PsCheckBox

An owner-drawn checkbox for FreeBASIC + Win32, built on AfxNova and PsBufferPaint. It draws a box glyph from a font — Segoe Fluent Icons by default — and an optional caption, with a focus ring around the pair. The box can sit on either side of the caption. You supply the colours and the fonts; the control owns the geometry and the state.

It is a real HWND, so you place and size it with SetWindowPos like any other control. It takes focus, tracks hover and press, greys itself when disabled through EnableWindow, and tells you when the user changed its state. It has two states — checked and unchecked. There is no indeterminate state.

The box is one composite glyph per state: U+E739, an empty outlined square, for unchecked, and U+E73A, the same square with a tick in it, for checked. Both are settable. That single decision shapes the rest of the control: the outline and the tick are one piece of ink in one colour, so an accent-filled box with a contrasting white tick is not reachable without a paint callback — but everything about the box's appearance is swappable by changing a font or a codepoint.

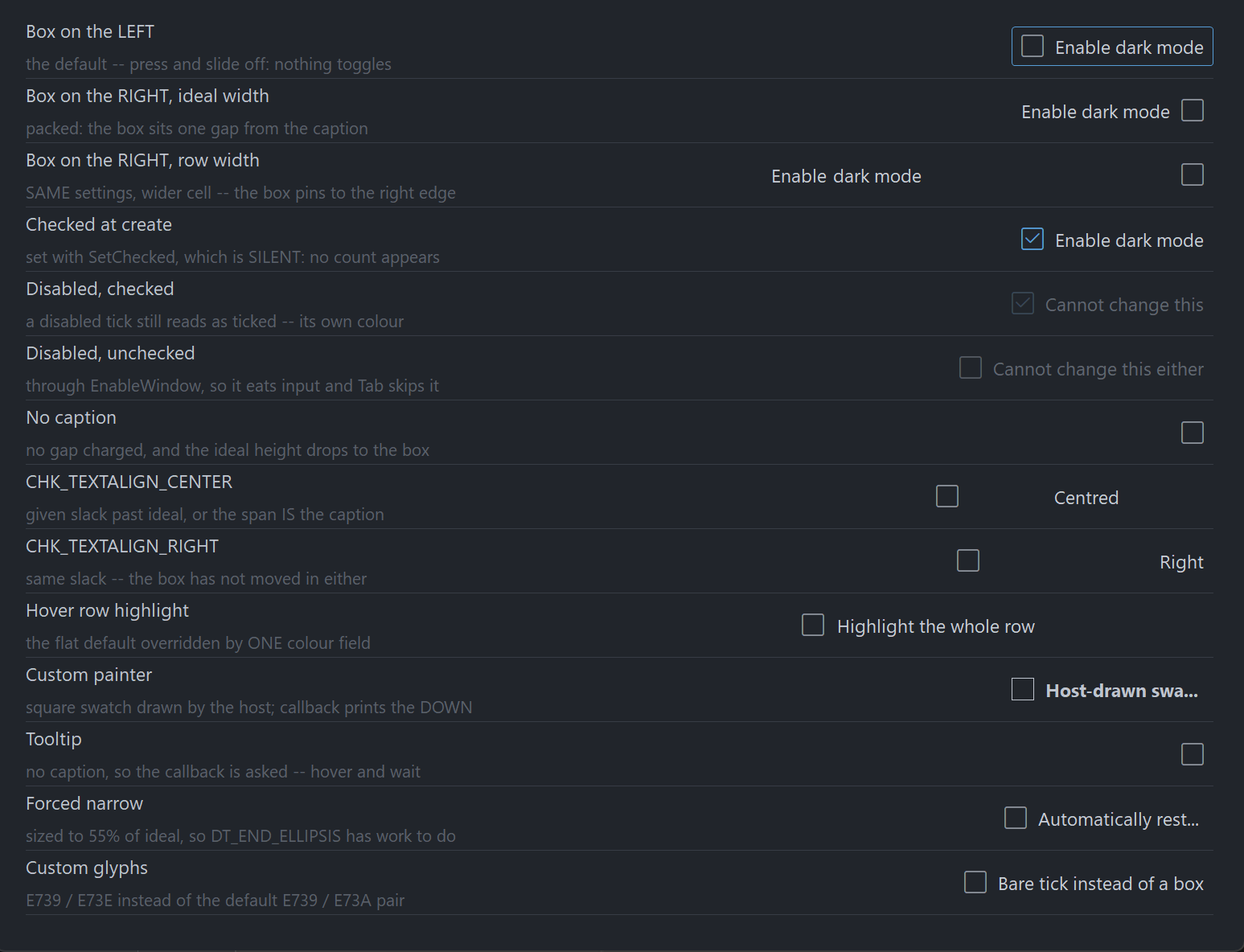

What it looks like

Requirements

Copy these files into your project:

You also need AfxNova on the include path (-i "C:\dev" if your tree matches this one), and a font supplying the box glyph — SegoeFluentIcons.ttf ships with this repo.

Include order

PsCheckBox.inc includes PsCheckBox.bi, which includes PsBufferPaint.bi. The implementation of PsBufferPaint is not pulled in for you, so include it yourself, first:

#include once "windows.bi"
#include once "AfxNova\CWindow.inc"
#include once "AfxNova\AfxStr.inc"
#include once "AfxNova\AfxGdiplus.inc"
using AfxNova

#include once "PsBufferPaint.inc"
#include once "PsCheckBox.inc"

Beyond that there is no ordering trap: PsCheckBox.bi names no type it does not itself include, so it compiles at any site that has already loaded PsBufferPaint.

GDI+ must be running

PsBufferPaint renders all geometry through GDI+. Initialize it before the first repaint and shut it down after every window is destroyed:

dim as ULONG_PTR gdipToken = AfxGdipInit()
function = frmMain_Show( 0 )
AfxGdipShutdown( gdipToken )

Without the bracket the control draws nothing.

Do not name anything ok

GDI+ defines Ok = 0 as a Status enum value in namespace AfxNova, and your host almost certainly says using AfxNova. Any identifier of your own called ok becomes a duplicate definition the moment you adopt this control. Use bOK.

Message pump

There is no PsCheckBox_FilterMessage. This control owns no popup and no second top-level window, so it adds no pump obligation — unlike PsComboBox, PsNumericUpDown and PsTextBox, which all do. If you arrived from one of those, there is nothing to look for here.

Two things your pump does need, because the control is focusable. First, IsDialogMessage:

do while GetMessage(@uMsg, null, 0, 0)
    if uMsg.message = WM_QUIT then exit do
    ' IsDialogMessage is what makes Tab move between controls.
    if IsDialogMessage(pWindow->hWindow, @uMsg) = 0 then
        TranslateMessage @uMsg
        DispatchMessage @uMsg
    end if
loop

Second, once at startup, focus on one of your controls:

SetFocus( hCheck )

IsDialogMessage only acts when the focused window is already a descendant of the window you pass it. Without that SetFocus, Tab does nothing until the user clicks something — a symptom that reads as broken tabstops. A dialog does this for you in WM_INITDIALOG; an ordinary CWindow host must do it itself.

Without IsDialogMessage the control still works fully with the mouse, and with Space and Enter once it has focus. Only Tab navigation is lost.

Quick start

dim as HWND hCheck = PsCheckBox_Create( hWndParent, IDC_MYCHECK )

PsCheckBox_SetFont( hCheck, ghFont(GUIFONT_10) )          ' caption font, and the MEASURING font
PsCheckBox_SetGlyphFont( hCheck, ghFont(SYMBOLFONT_12) )  ' Segoe Fluent Icons
PsCheckBox_SetText( hCheck, "Enable dark mode" )
PsCheckBox_SetChecked( hCheck, true )                     ' silent: fires no callback
PsCheckBox_SetCheckChangedCallback( hCheck, @OnDarkModeChanged )

' Size it to what it actually needs, then place it.
dim as long iw, ih
PsCheckBox_GetIdealSize( hCheck, iw, ih )
SetWindowPos( hCheck, 0, 20, 20, iw, ih, SWP_NOZORDER )
ShowWindow( hCheck, SW_SHOW )

sub OnDarkModeChanged( byval hCheckBox as HWND, byval isChecked as boolean )
    dim as string s = "dark mode = " & str(isChecked)
    print s
end sub

That callback fires for a completed click, for Space or Enter, and for PsCheckBox_Toggle. It does not fire for PsCheckBox_SetChecked.

Concepts

The handle is a real window

PsCheckBox_Create returns an HWND, not an opaque type, because you legitimately need to treat the control as a window — SetWindowPos, ShowWindow, EnableWindow, GetDlgItem. The CtrlID you pass becomes the window's GWLP_ID and the initial SetID value.

The control frees itself when its window is destroyed, and destroys its tooltip with it. The two fonts you hand it stay yours to delete.

Geometry is derived, never set

You never assign a rectangle. You set inputs — padding, box size, gap, focus ring — and the control derives four rectangles from them, lazily: a setter marks the layout stale, and the next paint or rect query does a single measuring pass. A burst of setters costs one measurement, not one each.

ringPad    = nFocusGap + nFocusThick          reserved ALWAYS, focused or not
textW      = measured caption width           0 when there is no caption
textH      = GetTextMetrics.tmHeight          one height for the control
textBlock  = hasText ? nBoxGap + textW : 0
contentH   = max( hasText ? textH : 0 , nBoxHeight )

nIdealW    = 2*ringPad + nPadLeft + nBoxWidth + textBlock + nPadRight
nIdealH    = 2*ringPad + nPadTop  + contentH + nPadBottom

rcContent  = rcClient deflated by ringPad on all four sides
rcVisual   = rcContent inflated by ringPad    ( = rcClient when sized ideally )

BOXALIGN_LEFT    rcBox  at rcContent.left + nPadLeft,  nBoxWidth x nBoxHeight, v-centred
                 rcText = ( rcBox.right + nBoxGap , rcContent.right - nPadRight )
BOXALIGN_RIGHT   rcBox  at rcContent.right - nPadRight - nBoxWidth, same, v-centred
                 rcText = ( rcContent.left + nPadLeft , rcBox.left - nBoxGap )

PsCheckBox_GetIdealSize is valid before the control has ever been sized — the measuring pass runs ahead of the check for a client area, precisely so you can call it to decide how big to make the control in the first place. It is also unaffected by starving the control's client area, so a host that always sizes with it can never see an ellipsis.

The box is pinned; the caption gets the leftover

The box cell is pinned to the padding on whichever side you put it, and the caption takes the whole span left over. One model, two looks, decided entirely by the width you give the control:

sized to GetIdealSize     [x] Enable dark mode              packed
sized to a row width      Enable dark mode            [x]   settings row

So a column of CHK_BOXALIGN_RIGHT checkboxes all given the same width will line their boxes up for free. Flipping the side does not change the ideal size — the box cell, the gap and both paddings are all still charged, they have only swapped ends.

PsCheckBox_SetTextAlign places the caption inside that span, not inside the control. With the box on the left and CHK_TEXTALIGN_RIGHT, the caption goes to the right-hand end of the span, not to the right-hand edge of the window. Sized to its ideal width the span is the caption, so all three alignments render identically — alignment only becomes visible once the control has slack.

The box cell is declared, not measured

PsCheckBox_SetBoxSize states how much room the glyph gets. The control never measures the glyph font, so a glyph too large for its cell clips rather than resizing the control. This is why PsCheckBox_SetGlyphFont repaints but never re-lays-out, and why swapping either glyph string can never change the ideal width.

Setters are silent; user interaction notifies

PsCheckBox_SetChecked changes the state and fires nothing — Win32's BM_SETCHECK / BN_CLICKED split. That is what makes it safe to call from inside your own change handler without recursing.

The one deliberate exception is PsCheckBox_Toggle, which flips the state and fires the callback. It is an action, not a setter — the equivalent of BM_CLICK, and the door your accelerator uses, since this control parses no mnemonics.

Focus and keyboard

The control is a WS_TABSTOP with real focus tracking and a painted focus ring. Space and Enter both toggle it while it is focused.

Enter is a departure from a system checkbox, which ignores it and lets it reach the dialog's default button. If that matters to your dialog, intercept WM_KEYDOWN through the message callback and return TRUE for VK_RETURN.

The focus ring's band is reserved whether or not the control has focus, so nothing moves when focus arrives — which also means the ring settings contribute to the ideal size.

Mouse capture and the cancelled gesture

The control takes mouse capture on a press, because press → slide off → release must not toggle. Only a matched press and release with the cursor still inside counts as a click. While the press is live the hover state keeps tracking, so sliding off visibly un-flashes the control before the release decides that nothing happened.

Behaviour and limits

• Two states only. isChecked is a boolean everywhere, including in the change callback. There is no indeterminate / tri-state.
• One colour per box. The composite glyph is a single piece of ink, so the box outline and the tick inside it always share a colour. A two-colour box needs a paint callback.
• No mnemonics. "&Enable" draws a literal ampersand. PsBufferPaint.PaintText forces DT_NOPREFIX, so this is enforced by the renderer rather than merely intended. Wire an accelerator to PsCheckBox_Toggle instead.
• No multiline. One line, ellipsized into the caption span. Wrapping would make the ideal height depend on the assigned width, which would cost GetIdealSize its "valid before sizing" guarantee.
• No HICON path. The box comes from a font, or from your paint callback.
• No WM_COMMAND / BN_CLICKED to the parent. State changes reach you through the callback only.
• No CS_DBLCLKS. A rapid second click is a legitimate second toggle; enabling double-clicks would turn it into a WM_LBUTTONDBLCLK the control would drop.
• No hit test. The whole client is the hit area — clicking the caption toggles, exactly as a system checkbox does — so a hit test could only ever be PtInRect(client).
• Overflow is honest, not squeezed. Too narrow, and the box keeps its declared size and its padding while the caption span collapses to zero width and the caption ellipsizes. Too short, and the content clips rather than deforming.
• Removing the caption drops the content height to the box alone. A caption-less checkbox is therefore never taller than a captioned one, and is shorter whenever the box is smaller than a line of text — which it is at the defaults. If you are laying out a column of mixed rows, take the max of the ideal heights yourself.
• SetGlyphFont is worth setting. Unset, the glyph falls back to the caption font, which will draw the Fluent codepoint as a missing-glyph box.

API reference

Creation

Content

All silent — they change what is drawn, never what was clicked.

The caption has one store reached through two doors: the control handles WM_SETTEXT, WM_GETTEXT and WM_GETTEXTLENGTH against the same field, so SetWindowText and GetWindowText work and generic code that walks children and reads their text sees a real caption. SetWindowText re-measures exactly as SetText does.

State

Reaching for EnableWindow yourself instead of SetEnabled also works: the control handles WM_ENABLE and syncs its own flag, so it still renders greyed rather than looking live while eating input.

Action

Geometry and layout

Every setter takes raw pixels; you do the DPI scaling. Only the Create-time defaults are scaled for you, and nFocusThick is never scaled at all — a hairline should stay a hairline.

All four rect queries force a pending layout first, so results are always current.

With auto-size on, the setters that re-apply it are exactly the ones that can move the ideal size: SetText (and WM_SETTEXT), SetFont, SetPadding, SetBoxGap, SetBoxSize, SetFocusRing, and SetAutoSize itself.

Appearance

Colour resolution

Both are pure functions — no control handle, no globals — so you can call them from your own paint callback to get exactly the colours the built-in painter would have used.

Tooltips

Resolution order: the control's own text, then TooltipCallback, then nothing. There is no caption fallback — a checkbox whose caption is already on screen would otherwise pop a tip that just repeats it.

Callback registration

Pass 0 to any of them to remove the callback.

Render probes

Neither is called by the control. They exist so a host writing its own paint callback can assert two specific defects rather than eyeball them. Both render the control offscreen with its current painter and with focus forced on, so the focus-ring step — the one the flood defect lives on — is actually exercised.

HashRenderedPart can only ever prove difference, never correctness — and only for what you isolate. Comparing checked against unchecked proves "the state reached the pixels", but not that the glyph did, because the box colour changes too. To isolate one variable, flatten the other first: set all eight box colours to the same value and the only thing left that can move a pixel is the glyph.

Colors

PSCHECKBOX_COLORS is a flat struct of COLORREF fields, all with defaults. Copy semantics: Set takes a copy, Get fills one out.

Precedence: disabled > pressed > hot > idle. The checked flag is not a mood — it selects between the two box colour sets inside whichever mood resolved, and touches nothing else. That is also why a disabled ticked box still reads as ticked: it has its own colour.

The control reads completely flat out of the box. BackColorHot, BackColorPressed and BackColorDisabled all default equal to BackColor, so hovering changes only the box and the caption. That is usually what you want in a settings pane. To get a menu-style highlight across the whole row, set one field:

dim as PSCHECKBOX_COLORS c
PsCheckBox_GetColors( hCheck, @c )
c.BackColorHot = BGR( 44, 49, 58)
PsCheckBox_SetColors( hCheck, @c )

Callbacks

CHK_CheckChangedCallbackSub

type CHK_CheckChangedCallbackSub as sub( byval hCheckBox as HWND, byval isChecked as boolean )

The state changed through user interaction — a completed click, Space, or Enter — or through PsCheckBox_Toggle. Fired after the state is updated, so PsCheckBox_GetChecked() already agrees with the isChecked you are handed.

PsCheckBox_SetChecked does not fire it, which is what makes it safe to call SetChecked from inside this handler.

Nothing fires for a cancelled gesture: press the control, slide off it, release, and the state does not change.

CHK_PaintCallbackSub

type CHK_PaintCallbackSub as sub( byval p as PSCHECKBOX_PAINTINFO ptr )

Draws the whole control instead of the built-in painter. Paint through p->b — the control's double buffer for this repaint. Do not touch the screen DC.

The control has already filled the client with the resolved mood's BackColor before calling you, so a callback that only adds a foreground does not have to repaint the background. The focus ring is the built-in painter's job too, so a callback that wants one must draw it.

Two rules worth honouring:

• Draw the caption with the same font you handed to PsCheckBox_SetFont. The ideal width was measured with it; a wider font here makes that measurement a lie and the caption clips.
• Do not use PaintBorderRect to draw a frame or a ring. It fills before it strokes, so used as an outline it erases everything beneath it and the control renders as one solid block. Use PaintRoundOutline, which strokes without filling, or PaintRectFactory when you do want the fill. PsCheckBox_CountRenderedTones exists so you can assert you have not made this mistake.

More generally: a callback that fills a rectangle covering the whole control erases everything already drawn. Draw your additions, not a background.

CHK_MessageCallbackFunc

type CHK_MessageCallbackFunc as function( byval m as PSCHECKBOX_MESSAGEINFO ptr ) as boolean

Observe messages. Return TRUE to suppress the control's default handling, FALSE to let it proceed.

You see the mouse messages (WM_MOUSEMOVE, WM_MOUSELEAVE, WM_LBUTTONDOWN, WM_LBUTTONUP, WM_RBUTTONDOWN, WM_RBUTTONUP), both focus messages, and WM_KEYDOWN. The right-button messages are reported and never acted on — a context menu is your business — and because no capture is taken for the right button, an up can arrive without a down.

The result is ignored for three messages:

CHK_TooltipCallbackFunc

type CHK_TooltipCallbackFunc as function( byval hCheckBox as HWND ) as DWSTRING

Called only when a tip is about to show, and only when the control has no tooltip text of its own. Return "" for no tooltip.

PSCHECKBOX_PAINTINFO

rcText is the span, not a tight box around the glyphs. That is what DT_END_ELLIPSIS needs; handed a tight box the ellipsis would have nowhere to happen. It also means filling rcText fills the whole span, not just behind the words.

Test presence on the rects, not on the strings: an absent caption leaves rcText empty, so IsRectEmpty is the single source of truth — and a degenerate span on a too-narrow control drops out of the same test.

PSCHECKBOX_MESSAGEINFO

Constants

Box side

Caption alignment within the span

Moods

Probe parts

Default glyphs

Both are written in the header as \u escapes rather than as literal characters, because a BOM-less source file is read as bytes and a pasted U+E739 would arrive as its three UTF-8 bytes. Do the same if you replace them from source.

Default geometry

All are DPI-scaled once at Create except PSCHECKBOX_DEFAULT_FOCUSTHICK, which is never scaled.

Hover tracking

WM_MOUSELEAVE is not reliably delivered on fast exits, so the control also polls the cursor while it is hot. The poll is suppressed while a press is live, because the press legitimately lets the cursor wander off and come back.
