PsListBox

An owner-drawn list box for FreeBASIC Win32 applications: a scrolling list of fixed-height rows that you paint yourself, with collapsible group headers, single / multiple / extended selection, per-row tooltips, and an optional multi-column report mode driven by a resizable header band.

It is the control you reach for when a system LISTBOX almost fits but its appearance does not — a file explorer pane, a results list, a symbol browser, an autocomplete popup. There is no system control underneath: the whole surface is drawn in one pass through a double buffer, so nothing about the look depends on the visual style the user happens to be running.

The control owns three child windows for you — the row surface, an owner-drawn vertical scrollbar that appears only while the rows overflow, and a column header band that starts hidden. You never create or position any of them. What you supply is a row paint callback: the control decides which rows are drawn, where they sit, and what state each is in, and you decide what a row looks like.

Rows are addressed by model index — the order you added them. Collapsing a group hides rows but never renumbers anything.

---

What it looks like

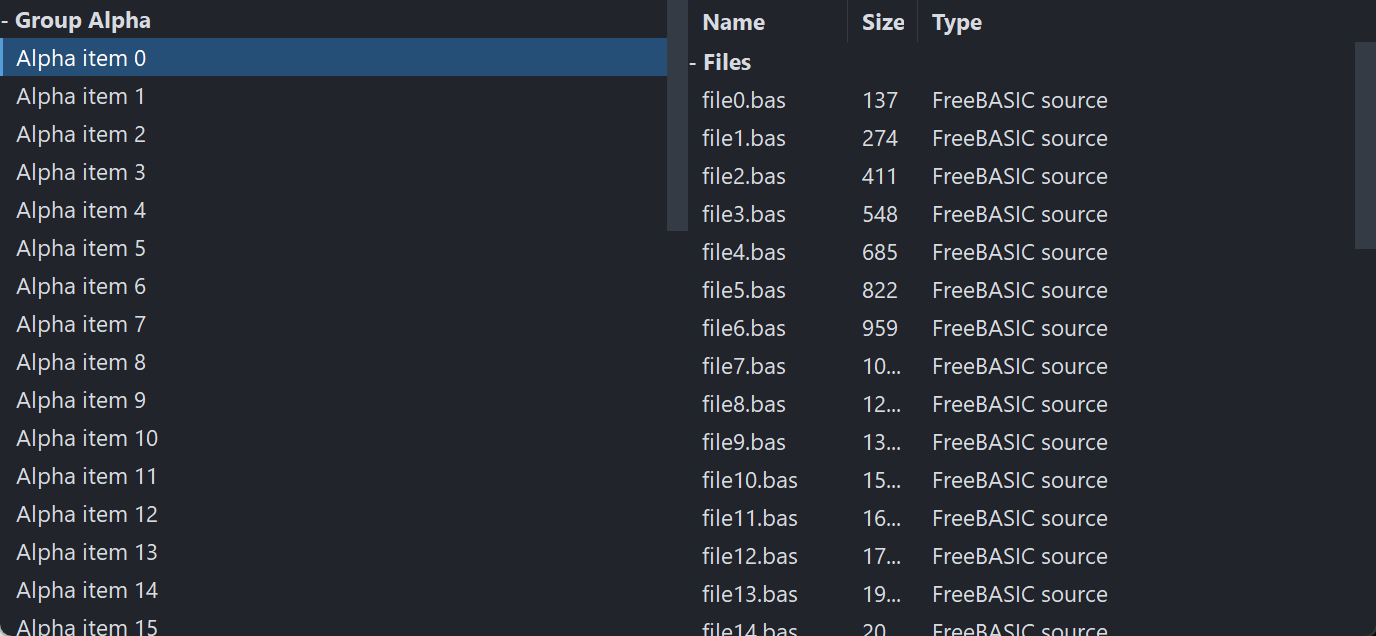

Two instances. On the left a grouped single-column list — a collapsible group header, one selected row, and rows that keep their selection across a collapse. On the right the same control in report mode: a PsColumnHeader band (Name / Size / Type), a group row, and an embedded PsVScrollBar down the right edge. Public indices in both are model indices; the visible index space never leaks out.

---

Requirements

Files to copy into your project:

All six files are required even if you never define a column and never touch the scrollbar: the control creates both children unconditionally.

AfxNova is required. The control is built on CWindow, and PsBufferPaint draws through AfxNova\CGdiPlus.inc. Sources include AfxNova relative to the workspace root (#include once "AfxNova\CWindow.inc"), so builds need the workspace root on the include path:

fbc64.exe -i "C:\dev" main.bas

Include order — this one bites. PsListBox.bi includes only PsBufferPaint.bi. It does not include PsVScrollBar.bi or PsColumnHeader.bi, yet it names types from both: CVSCROLL_DEFAULT_WIDTH and VScrollPaintCallbackSub from the scrollbar, and HDR_WidthChangedCallbackSub, HDR_ClickCallbackSub, HDR_AutoSizeCallbackFunc, HDR_PaintCallbackSub and HDR_TooltipCallbackFunc from the header. It therefore compiles only at an include site that has already pulled those two in. Include the four implementation files in exactly this order:

#include once "PsBufferPaint.inc"
#include once "PsVScrollBar.inc"
#include once "PsColumnHeader.inc"
#include once "PsListBox.inc"

Get the order wrong and the errors point at PsListBox.bi, naming types rather than the missing include.

The AfxNova headers come first, before any of the above:

#include once "windows.bi"
#include once "AfxNova\CWindow.inc"
#include once "AfxNova\AfxStr.inc"
#include once "AfxNova\AfxGdiplus.inc"
using AfxNova

GDI+ must be running before the first repaint and must outlive the last one. All geometry is rendered through GDI+, so bracket your message loop:

dim as ULONG_PTR gdipToken = AfxGdipInit()
' ... create windows, run the message loop ...
AfxGdipShutdown( gdipToken )

AfxGdipShutdown must come after every window is destroyed, because each repaint builds and tears down a PsBufferPaint.

Never name an identifier ok. GDI+ defines Ok = 0 as a Status enum value in namespace AfxNova, and hosts customarily say using AfxNova. An existing variable, parameter or function called ok becomes a duplicate definition the moment you adopt these files. Use bOK instead.

There is no message-pump filter. Neither this control nor the header nor the scrollbar installs one; there is no PsListBox_FilterMessage to call. The only pump requirement is the ordinary dialog-manager one below.

For Tab navigation, call IsDialogMessage in your message pump. The row surface is a tabstop, and the container declares itself a control parent, so the dialog manager will step into the control — but only if you give it the chance:

do while GetMessage( @uMsg, null, 0, 0 )
    if uMsg.message = WM_QUIT then exit do
    if IsDialogMessage( hWndForm, @uMsg ) = 0 then
        TranslateMessage @uMsg
        DispatchMessage @uMsg
    end if
loop

Without it, mouse operation and the keyboard are unaffected once the list has focus — only Tab navigation is lost. The arrow keys are safe either way: the surface answers WM_GETDLGCODE with DLGC_WANTARROWS or DLGC_WANTCHARS, so IsDialogMessage does not steal them for tab-navigation.

Give something the focus at startup. IsDialogMessage acts only when the focused window is already a descendant of the window you pass it. A real dialog does this in WM_INITDIALOG; an ordinary window must call SetFocus on its first control itself. Skip it and the first Tab does nothing, which is indistinguishable from the tabstops being broken. Clicking the list also gives it focus, so this only affects a keyboard-first start.

---

Quick start

' Create it. The control is created zero-sized and hidden; place it yourself.
dim as HWND hList = PsListBox_Create( hWndParent, IDC_MYFORM_LIST )
SetWindowPos( hList, 0, x, y, cx, cy, SWP_NOZORDER or SWP_SHOWWINDOW )

' You MUST supply a row painter -- without one, rows are not drawn at all.
PsListBox_SetPaintCallback( hList, @MyList_PaintRow )

' Optional: observe mouse messages, supply tooltips, hear about selection moves.
PsListBox_SetMessageCallback( hList, @MyList_Message )
PsListBox_SetTooltipCallback( hList, @MyList_Tooltip )
PsListBox_SetSelChangeCallback( hList, @MyList_SelChange )

' Appearance. The font is borrowed -- you keep ownership and destroy it yourself.
PsListBox_SetBackColor( hList, theme.BackColor )
PsListBox_SetFont( hList, ghFont(GUIFONT_10) )
PsListBox_SetScrollBarColors( hList, theme.BackColorScrollBar, _
                             theme.ForeColorScrollBar, theme.ForeColorScrollBarHot )

' Selection mode. Both off = single-select.
PsListBox_SetExtendedSelect( hList, true )     ' Shift ranges / Ctrl toggles

' Bulk load, batched: one map rebuild and one repaint instead of one per row.
PsListBox_BeginUpdate( hList )
PsListBox_AddHeader( hList, "Group Alpha" )
for i as integer = 0 to 20
    PsListBox_AddString( hList, "Alpha item " & i, 1000 + i )
next
PsListBox_EndUpdate( hList )

' Silent -- the SelChange callback does not fire for this.
PsListBox_SetCurSel( hList, 1 )

And the row painter:

sub MyList_PaintRow( byval p as PSLISTBOX_PAINTINFO ptr )
    ' State priority is yours to choose: selected > hot > normal is the usual one.
    dim as COLORREF backclr, foreclr
    if p->isSelected then
        backclr = theme.BackColorSelect : foreclr = theme.ForeColorSelect
    elseif p->isHot then
        backclr = theme.BackColorHot    : foreclr = theme.ForeColorHot
    else
        backclr = theme.BackColor       : foreclr = theme.ForeColor
    end if
    p->b->SetForeColor( foreclr )
    p->b->SetBackColor( backclr )
    p->b->PaintRect( @p->rc )          ' the whole row: selection spans it

    if p->isHeader then
        dim as DWSTRING wszPrefix
        if p->isCollapsed then wszPrefix = "+ " else wszPrefix = "- "
        p->b->SetFont( ghFont(GUIFONTBOLD_10) )
        p->b->PaintText( wszPrefix & p->wszCaption, @p->rc, DT_LEFT )
    else
        dim as RECT rcText = p->rc
        rcText.left += 16
        p->b->PaintText( p->wszCaption, @rcText, DT_LEFT )
    end if
end sub

That is the whole minimum. To turn on report mode, add columns and show the band:

PsListBox_AddColumn( hList, "Name", 160 )
PsListBox_AddColumn( hList, "Size", 70 )
PsListBox_AddColumn( hList, "Type" )              ' the fill column (default: the last)
PsListBox_SetHeaderPaintCallback( hList, @MyHeader_PaintColumn )
PsListBox_SetHeaderBackColor( hList, theme.BackColorScrollBar )
PsListBox_SetHeaderFont( hList, ghFont(GUIFONTBOLD_10) )
PsListBox_ShowHeader( hList, true )

' Cell text: column 0 IS the row's text; columns 1..N are per-row cells.
dim as integer r = PsListBox_AddString( hList, "file0.bas" )
PsListBox_SetCellText( hList, r, 1, "137" )
PsListBox_SetCellText( hList, r, 2, "FreeBASIC source" )

Your row painter then sees p->columnCount > 0 and a p->cells array — fill the full row background first, then draw each cell inside its own rect:

dim as integer pad = PsColumnHeader_GetPadding( PsListBox_GetHeader( hList ) )
for c as integer = 0 to p->columnCount - 1
    dim as RECT rcCell = p->cells[c].rc
    rcCell.left += pad : rcCell.right -= pad
    p->b->PaintText( p->cells[c].wszText, @rcCell, DT_LEFT or DT_END_ELLIPSIS )
next

---

Concepts

The handle is a real HWND

PsListBox_Create returns an ordinary window handle, and every PsListBox_* function takes it. It is not an opaque type, so you can treat the control as the window it is — SetWindowPos to place and size it, ShowWindow to show it, GetDlgItem to find it by the CtrlID you passed at creation.

That handle is the container. It hosts three children: the row surface, the scrollbar and the header band. Every function resolves them internally. Never pass a child handle to a PsListBox_* function — results are undefined.

The children take consecutive control ids: the surface gets CtrlID, the scrollbar CtrlID + 1, the header CtrlID + 2. Leave that much room around whatever id you pick.

It is created zero-sized and hidden

PsListBox_Create gives the container the styles WS_CHILD, WS_CLIPSIBLINGS and WS_CLIPCHILDREN. WS_VISIBLE is deliberately absent, so a newly created control shows nothing until you size it and show it. That lets you build and configure the list — colours, font, columns, contents — before it is ever seen.

Row indices are model indices

Rows are addressed by the order they were added, independent of what is on screen. Collapsing a group does not renumber anything, and hidden rows keep working with every row API, selection included. Internally the control maps model rows to visible positions; that mapping never leaks out. Everything you receive — PSLISTBOX_PAINTINFO.itemID, PSLISTBOX_MESSAGEINFO.idx, PsListBox_GetCurSel, PsListBox_GetSelItems, PsListBox_GetTopIndex — is a model index too.

PsListBox_GetCount is every row in the model. PsListBox_GetVisibleCount is the rows currently on show. They differ exactly when something is collapsed.

Groups are flat

A row is either a header (PsListBox_AddHeader) or an item (PsListBox_AddString). Items belong to the nearest preceding header. There is one level — headers do not nest. Collapsing a header hides its items until the next header.

Headers are ordinary rows in every other respect: they are selectable, they are returned by PsListBox_GetSelItems, and they carry itemData. Use PsListBox_IsHeader to tell them apart.

Clicking a header toggles its group and leaves the selection alone — it is a fold gesture, not a select.

Selection lives on the rows

Selection is a per-row flag in the model, not a bit inside a system listbox. That is what makes it survive collapse and expand, and it is why a hidden row can be selected. Three modes, and the two flags are mutually exclusive:

Setting either mode clears the other. PsListBox_GetCurSel reports the focused row (the caret), which is not the same as "the selection" once more than one row can be selected — use PsListBox_GetSelItems for that.

Everything is painted in one pass

One WM_PAINT on the surface fills the whole client with BackColor and then calls your paint callback once per visible row, all into a single buffer. There is no per-row message and no per-row buffer.

p->rc and the cell rects are in the surface's client coordinates, not in a row-sized buffer starting at y = 0. Derive everything from p->rc and you never have to care.

Rows below the last one are not painted at all; the control's background already covers that strip, which is why an empty list needs no special handling from you.

If you set no paint callback, no rows are drawn — only the background. That is the one callback the control genuinely needs.

The scrollbar manages itself

The control creates a PsVScrollBar, positions it on the right edge, keeps its range in step with the model, and auto-hides it whenever the rows fit — at which point the row surface reclaims the full client width. You never call SetRange or SetPos.

What is left to you is appearance: PsListBox_SetScrollBarWidth, PsListBox_SetScrollBarColors, PsListBox_SetScrollBarPaintCallback, or PsListBox_GetScrollBar for direct PsVScrollBar_* calls.

The mouse wheel is handled on the row surface, not by the bar: one notch scrolls SPI_GETWHEELSCROLLLINES rows (re-read per message, and capped at one page), with the sub-notch remainder accumulated so a precision touchpad scrolls smoothly rather than in jumps. The thumb follows.

Columns are optional, and the header band owns them

With no columns defined, the control paints as a single-column list and your painter sees p->columnCount = 0.

Define columns and one thing changes: item rows arrive with a cells array giving each column's x-span. Group-header rows never get cells — they always span the full width, so columnCount is 0 for them regardless.

The column model lives in the embedded PsColumnHeader, which is the single store for widths, minimums and the fill designation. The PsListBox_*Column* functions are wrappers that delegate to it. See PsColumnHeader.md for the width, minimum-width and fill rules.

Column definitions and cell text are independent. Cell storage is sparse and per row, so you can populate rows before or after defining columns; a cell never set reads back "". The band itself starts hidden — columns still lay out and rows still paint in columns, you simply get no interactive header strip until PsListBox_ShowHeader( h, true ).

The header band spans the full container width, over the scrollbar strip, so column geometry never shifts when the scrollbar auto-hides.

Column 0 is the row's text

PsListBox_GetText/SetText and the cell functions with col = 0 address the same storage. Columns 1..N live in the row's own sparse cell array. This is why a list written before columns existed keeps working unchanged.

Inserting or deleting a column shifts every row's cell storage across that alias — insert a column at 0 and each row's text becomes its column 1 cell.

Spanned rows

An ordinary, selectable row can be made to paint as one cell across the whole column band instead of one cell per column — PsListBox_SetRowSpanColumns( h, row, true ). Use it for a section note, a "no results" line, or any wide message row that lives among columned rows.

Its text stays in column 0 (PsListBox_GetText / GetCellText( h, row, 0 )). At paint time the callback receives p->columnCount = 1 with p->isSpanned = true; cells[0].rc runs from column 0's own left to the last column's right (the same left a normal column-0 cell gets, so the spanned text lines up under column 0), and cells[0].wszText is the column-0 text. A painter that already loops for c = 0 to columnCount - 1 draws it correctly with no new branch — it simply draws one wide cell. Selection and hover still fill the full p->rc, and the row selects, hot-tracks and keyboard-navigates like any other.

Two details worth knowing:

• With no columns defined, a spanned row is already full-width (columnCount = 0); the flag only advertises the intent via p->isSpanned.
• A spanned row is exempt from the column-shift above: inserting or deleting a column never moves its text out of column 0, so its caption cannot be silently blanked.

Group headers are not spanned rows — they have their own isHeader path and carry isSpanned = false.

Drag-and-drop reordering

Opt in with PsListBox_SetDragReorder( h, true ) (default OFF) and the user can drag rows to new positions inside the same list:

• What drags — press an item and move past the system drag threshold. If the pressed row is part of a multi-selection, the whole selection moves (gathered contiguously at the drop, keeping its relative order, even if it was non-contiguous); otherwise just that one row. Headers and non-selectable rows are never draggable.
• Where it drops — a horizontal insertion line shows the target gap. Dropping on a header highlights it and inserts the block as that header's first children (a collapsed header expands on drop). Because grouping is positional, a row dropped into another group simply belongs to it afterward.
• Feedback — the insertion line / header highlight paints in SetDragIndicatorColor (accent blue by default). Dragging near the top/bottom edge auto-scrolls so off-screen targets are reachable. Esc — or any loss of mouse capture — cancels the drag with no move.

The control moves its own model and fires two optional callbacks: CanDrop just before (return FALSE to reject — it receives the source rows and the drop-target row's ROWINFO), and DragDrop just after (the block's new first row and count, so you can resync parallel data via itemData). This is the only gesture in the control that takes mouse capture, and only while a drag is actually in progress.

PsListBox_MoveRows( h, srcRows(), insertBefore ) performs the same reorder programmatically — silent (no DragDrop), like every other setter.

Non-selectable rows

A row can be made non-selectable — PsListBox_SetRowSelectable( h, row, false ). It then cannot be selected or focused by any path, and keyboard navigation skips over it:

• Mouse — clicking it changes nothing (no selection, no focus). The host still sees the raw click through the message callback.
• Keyboard — arrows, PageUp/Down, Home and End step past it to the nearest selectable row. A single-step arrow that would only reach non-selectable rows leaves the caret where it is; the paging and Home/End keys always land on some selectable row if one exists.
• Programmatic — SetCurSel returns -1 and no-ops, SetSel( …, true ) returns FALSE, SelectAll skips it, and a Shift-range selects every selectable row it spans but not this one.

The rule is a hard invariant: a non-selectable row is never selected and never focused. If you mark a row non-selectable while it is the current/selected row, its selection is cleared and the caret is dropped (silent, repaints). To select it again, clear the flag first.

The paint callback gets p->isSelectable, so a painter can grey the row — that is cosmetic; the control does the blocking regardless of how you draw it. The flag is independent of the others: a row can be spanned and non-selectable at once (a section note that fills the width and can't be picked).

Batch bulk changes

Every model mutator rebuilds the visible map and repaints. Wrap a bulk load in PsListBox_BeginUpdate / PsListBox_EndUpdate and that collapses to one rebuild and one repaint, turning an O(n²) load into O(n). The pairs nest.

Programmatic changes are silent

PsListBox_SetCurSel, SetSel, SelectAll and Clear never fire the SelChange callback. It reports user action only — a click, or a keyboard move. This follows Win32's own LB_SETCURSEL / LBN_SELCHANGE split, and it means you can call the setters from inside your own handler without recursing.

The same rule holds for column widths: PsListBox_SetColumnWidth repaints but fires no resize callback. Only a user drag or an autosize notifies.

Pixels, and who scales them

Row height and header height are the trap in both directions: hand them a value you have already scaled and it gets scaled twice.

Keyboard

The row surface handles these itself and consumes them, so they never reach the message callback:

Shift and Ctrl modify the arrow and page moves the same way they modify a click. Because WM_KEYDOWN never reaches the message callback, SelChangeCallback is the only way to observe keyboard navigation.

Every move ensures the new focus row is on screen.

Hover, tooltips and focus

Exactly one row is hot at a time. Hover state is cleared both by WM_MOUSELEAVE and by a 100 ms cursor poll, because WM_MOUSELEAVE is not reliably delivered on fast exits.

Tooltips are resolved on demand: with no tooltip callback the hovered row's own text is used; with one, whatever it returns, and "" suppresses the tip entirely. The tip is popped when the hot row changes so the next hover re-queries.

A left click calls SetFocus on the row surface before your message callback runs. If the list must not hold focus — an autocomplete popup over an editor, say — put the focus back from your callback.

Lifetime

The control frees itself, its tooltip and all three children when its window is destroyed. Fonts you pass in stay yours: the control stores the HFONT and never destroys it.

---

Behaviour and limits

Firm properties of the control, not settings:

• Nothing is drawn without a paint callback. The background is filled, and that is all.
• All rows are the same height. There is no per-row height, so a group header cannot be taller than its items.
• Groups do not nest. One level of headers, and a group runs to the next header.
• Text setters do not repaint. PsListBox_SetText, SetCellText, SetItemData and SetItemDataExtra change the model and return — they do not invalidate. Call PsListBox_Refresh after changing text on a list that is already on screen.
• PsListBox_SetBackColor does not repaint either. It stores the colour and returns the previous one. Set it before showing the control, or follow it with PsListBox_Refresh.
• Group-header rows never receive cells. They span the full width even in report mode, so columnCount is 0 for them.
• The control does not clip between cells. Cell rects are handed to you as computed; drawing text wider than its cell will spill into the next one. DT_END_ELLIPSIS is the answer.
• The control never sorts. PsListBox_SetColumnClickCallback is the hook; reordering the rows is yours.
• The cells pointer is valid only during the paint callback. It points at control-owned scratch reused for every row. Copy anything you need to keep.
• Cell text survives PsListBox_ClearColumns. Clearing column definitions does not clear row data — the two are deliberately independent.
• PsListBox_GetColumnWidth on the fill column returns its laid-out width, not the stored one. Setting a width on the fill column stores it but has no visual effect until that column stops being the fill.
• The message callback's return value has no effect for the button messages. For WM_LBUTTONDOWN, WM_LBUTTONUP, WM_RBUTTONDOWN and WM_LBUTTONDBLCLK the surface consumes the message either way, and for the button-down the control's own selection or collapse handling has already run by the time you are called. Returning TRUE suppresses DefWindowProc only for WM_MOUSEMOVE, WM_MOUSEHOVER, WM_MOUSELEAVE and WM_MOUSEWHEEL.
• PSLISTBOX_MESSAGEINFO.idx is filled only for the button and hover messages. It stays -1 for WM_MOUSEMOVE, WM_MOUSELEAVE and WM_MOUSEWHEEL.
• Clicks that land below the last row do not reach the message callback at all, for any button message.
• The wheel is reported only when it actually scrolls. A wheel gesture against the end of the list does not call the message callback.
• The header band's own WidthChanged slot belongs to the control. Subscribe with PsListBox_SetColumnResizeCallback, never with PsColumnHeader_SetWidthChangedCallback on the handle from PsListBox_GetHeader. Every other header callback passes straight through.
• No horizontal scrolling. Columns wider than the client run off the right edge and are clipped there.
• No in-place editing, no drag-reorder of rows, no checkbox column, no icons. Anything of that kind is drawn by your painter and driven by your message callback.

---

API reference

Every function takes the handle from PsListBox_Create as its first argument, written h in the tables below.

Creation

Content

Add* and Insert* return the new row's model index, or -1 on failure.

Groups

Collapse, expand and toggle act only on header rows and return FALSE for an item or an invalid index.

Selection and state

Drag-and-drop reordering

Opt-in; see the Drag-and-drop reordering concept above. Register the callbacks with the functions under Callback registration.

Appearance

Scrollbar

Nothing here is required; the control creates, positions, ranges and auto-hides the bar itself.

Columns and the header band

All optional. Widths and minimum widths are pixels; see PsColumnHeader.md for the layout rules these delegate to.

Callback registration

Passing 0 to any callback setter clears it.

---

Colors

There is no colour struct. The control paints only its own background; every row pixel is yours, drawn from whatever palette your host already has. That is deliberate — a list of this kind is skinned by its host, and a fixed struct of row colours would only get in the way.

What the control itself owns:

Which colour wins

The control does not decide; it hands you the state flags and you resolve them. It does guarantee what can be true at once, which is what makes a precedence order well defined:

isSelected   >   isHot   >   plain

with isFocused drawn as an accent on top of whichever of those applied, because the caret row and the selection are different things once more than one row can be selected.

• At most one row is isHot at any moment, and it clears deterministically when the cursor leaves.
• isHot and isSelected can both be true — the cursor resting on a selected row.
• isFocused marks the caret row and is independent of isSelected: in checklist mode the arrow keys move the caret without selecting anything.
• isHeader and isCollapsed describe the row, not its mood. isCollapsed is meaningful only when isHeader is TRUE.

What draws what

In report mode, fill the full row rect first so selection and hover span the row listview-style, then draw each cell inside cells[i].rc.

---

Callbacks

The four PsListBox typedefs are unprefixed — PaintCallbackSub, MessageCallbackFunc, TooltipCallbackFunc and SelChangeCallbackSub occupy those exact names. If you are combining these files with other controls, that is a name collision to check for.

Row paint

type PaintCallbackSub as sub( byval p as PSLISTBOX_PAINTINFO ptr )

Draws one row. Called once per visible row on every repaint, so keep it cheap. Paint through p->b — the control's buffer for this repaint — and never touch a screen DC. The control has already filled the client with BackColor and selected the control font into the buffer; you may override the font per row.

PSLISTBOX_PAINTINFO:

columnCount is 0 and cells is null whenever the row should paint as one full-width cell with no columns to fill: no columns are defined, or the row is a group header.

A spanned row (isSpanned = true) over defined columns instead arrives with columnCount = 1 and a single cells[0] whose rect covers the whole column band — so a painter that loops for c = 0 to columnCount - 1 draws it as one wide cell unchanged. (With no columns defined it is already full-width, columnCount = 0, and only isSpanned marks the intent.) Whenever you fill the row background from p->rc before drawing cells, selection and hover cover the whole row in every case.

PSLISTBOX_CELLINFO:

The cells array is control-owned scratch, valid only for the duration of the callback. It is reused for every row. Copy anything you need to keep.

The control does not clip between cells. Text wider than its cell spills into the next one; use DT_END_ELLIPSIS.

Message

type MessageCallbackFunc as function( byval m as PSLISTBOX_MESSAGEINFO ptr ) as boolean

Observes mouse messages on the row surface. Return TRUE to suppress the control's remaining handling of that message, FALSE to let it proceed.

PSLISTBOX_MESSAGEINFO:

Which messages arrive, and what the return value actually does:

The button messages are consumed by the surface either way, which is why the return value cannot change them. More importantly, the control's own handling has already happened by the time WM_LBUTTONDOWN reaches you: focus has been taken, and the click's selection change or header collapse has been applied. Treat this callback as an observer.

WM_KEYDOWN is not reported here — the surface consumes the navigation keys itself. Use the SelChange callback.

Tooltip

type TooltipCallbackFunc as function( byval hListControl as HWND, byval row as integer ) as DWSTRING

Supplies the tooltip text for a model row, on demand — called only when a tip is about to show. Return "" for no tooltip on that row. With no callback installed, the row's own text is used. hListControl is the control handle, not the surface.

Selection changed

type SelChangeCallbackSub as sub( byval hListControl as HWND, byval row as integer )

The user moved the selection — by clicking a row, or by moving the caret with the keyboard (arrows, PageUp/Down, Home/End, Left to a header, Space). row is the model index of the newly focused row, or -1 if there is none. Fires after the control's state is updated, so PsListBox_GetCurSel already agrees.

This is the only way to observe keyboard navigation, because the control consumes WM_KEYDOWN itself and it never reaches the message callback. A mouse-only host can keep using WM_LBUTTONUP in the message callback instead.

It does not fire for PsListBox_SetCurSel, SetSel, SelectAll or Clear, which is what makes those safe to call from inside this handler. Nor does it fire when the user re-selects the row that is already current, or when a clamped arrow key does not actually move the caret — only a real change notifies.

Drag and drop

type PSLISTBOX_DROPINFO
    hList        as HWND
    srcRows      as integer ptr           ' the MODEL indices being dragged (srcCount of them)
    srcCount     as integer
    insertBefore as integer               ' MODEL index the block will land before (0..rowCount)
    onHeader     as boolean               ' TRUE = dropped on a header (block becomes its first children)
    targetRow    as integer               ' MODEL index of the drop-target row, or -1 at the list end
    targetInfo   as PSLISTBOX_ROWINFO ptr ' the target row's ROWINFO (read-only), or NULL at the end
end type

type CanDropCallbackFunc as function( byval p as PSLISTBOX_DROPINFO ptr ) as boolean
type DragDropCallbackSub as sub( byval hList as HWND, byval newFirstRow as integer, byval count as integer )

CanDrop fires just before a user drop commits. Return FALSE to reject it — the model is left untouched. The DROPINFO is a snapshot valid only for the duration of the call: srcRows points at control-owned scratch and targetInfo at a live ROWINFO, so copy anything you need to keep and do not mutate the model from inside. Unset = every drop is allowed.

DragDrop fires just after a user drop moves rows. newFirstRow is the model index the moved block now starts at and count is how many rows moved — walk newFirstRow .. newFirstRow+count-1 with the getters (or itemData) to resync a parallel model. It does not fire for PsListBox_MoveRows (programmatic moves are silent, like every other setter).

Header callbacks

The five header callbacks registered through PsListBox_Set* use the HDR_* typedefs and are documented in full in PsColumnHeader.md. Two notes specific to using them through PsListBox:

• PsListBox_SetColumnResizeCallback is the only correct door for resize notifications. The header's own WidthChanged slot is taken by this control, which needs it to repaint the rows on every live drag before re-broadcasting to you.
• The hHeader parameter these callbacks receive is the header window, not the control. Use GetParent if you need the list.

---

Constants

Defined in PsListBox.bi:

Defaults the control starts with:

The fill-column designations passed to PsListBox_SetFillColumn come from PsColumnHeader.bi:

---

Related controls

PsListBox creates and owns two other controls. You never create either one, and both are destroyed with the list.

Both handles are escape hatches for appearance and queries. Two things you must not do through them: do not set the header's WidthChanged callback (use PsListBox_SetColumnResizeCallback), and do not call PsVScrollBar_SetRange or PsVScrollBar_SetScrollCallback — the list owns the range and the scroll notification, and overwriting either desynchronises the thumb from the list.

PsColumnHeader also works standalone; it knows nothing about list boxes.
