PsListTree

An owner-drawn list and tree control for FreeBASIC Win32 applications: a scrolling list of fixed-height rows that you paint yourself, with unlimited-depth tree nodes, control-drawn expand/collapse twisties, in-place label editing, collapsible group headers, single / multiple / extended selection, per-row tooltips, and an optional multi-column report mode driven by a resizable header band.

The name says it: PsListTree is a list box and a tree view in one control. As a tree it does what the traditional Win32 tree view (SysTreeView32) does — parent/child hierarchy of any depth, +/− twisties, per-level indentation, Left/Right collapse and expand, and F2 rename-in-place with begin/end callbacks that mirror TVN_BEGINLABELEDIT / TVN_ENDLABELEDIT. The differences are deliberate: it is fully owner-drawn (no visual-style dependency and every row pixel is yours), nodes are addressed by plain model index rather than opaque HTREEITEM handles, and a flat list, a grouped list and a deep tree are all the same control — a classic header/item group is simply the depth-1 case. See Tree view and in-place editing below.

It is the control you reach for when a system LISTBOX or SysTreeView32 almost fits but its appearance does not — a file explorer pane, a results list, a symbol browser, an autocomplete popup, a settings tree. There is no system control underneath: the whole surface is drawn in one pass through a double buffer, so nothing about the look depends on the visual style the user happens to be running.

The control owns three child windows for you — the row surface, an owner-drawn vertical scrollbar that appears only while the rows overflow, and a column header band that starts hidden. You never create or position any of them. What you supply is a row paint callback: the control decides which rows are drawn, where they sit, and what state each is in, and you decide what a row looks like.

Rows are addressed by model index — the order you added them. Collapsing a group hides rows but never renumbers anything.

---

What it looks like

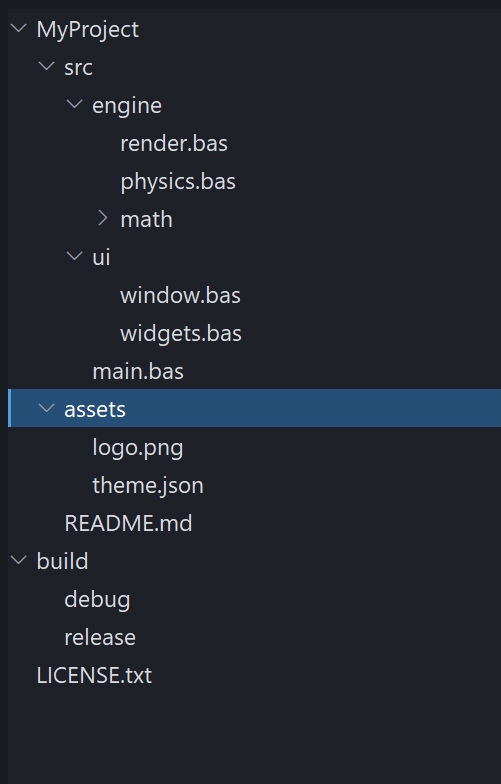

As a tree — tree_demo.exe:

A multi-level tree built with PsListTree_AddNode: per-depth indentation, control-drawn chevron twisties (˅ on expanded parents, › on the collapsed math node), leaf nodes with no twisty, the selected root with its focus bar, and F2 / click-to-rename editing. This is exactly the behaviour of a traditional tree view, drawn entirely by the control.

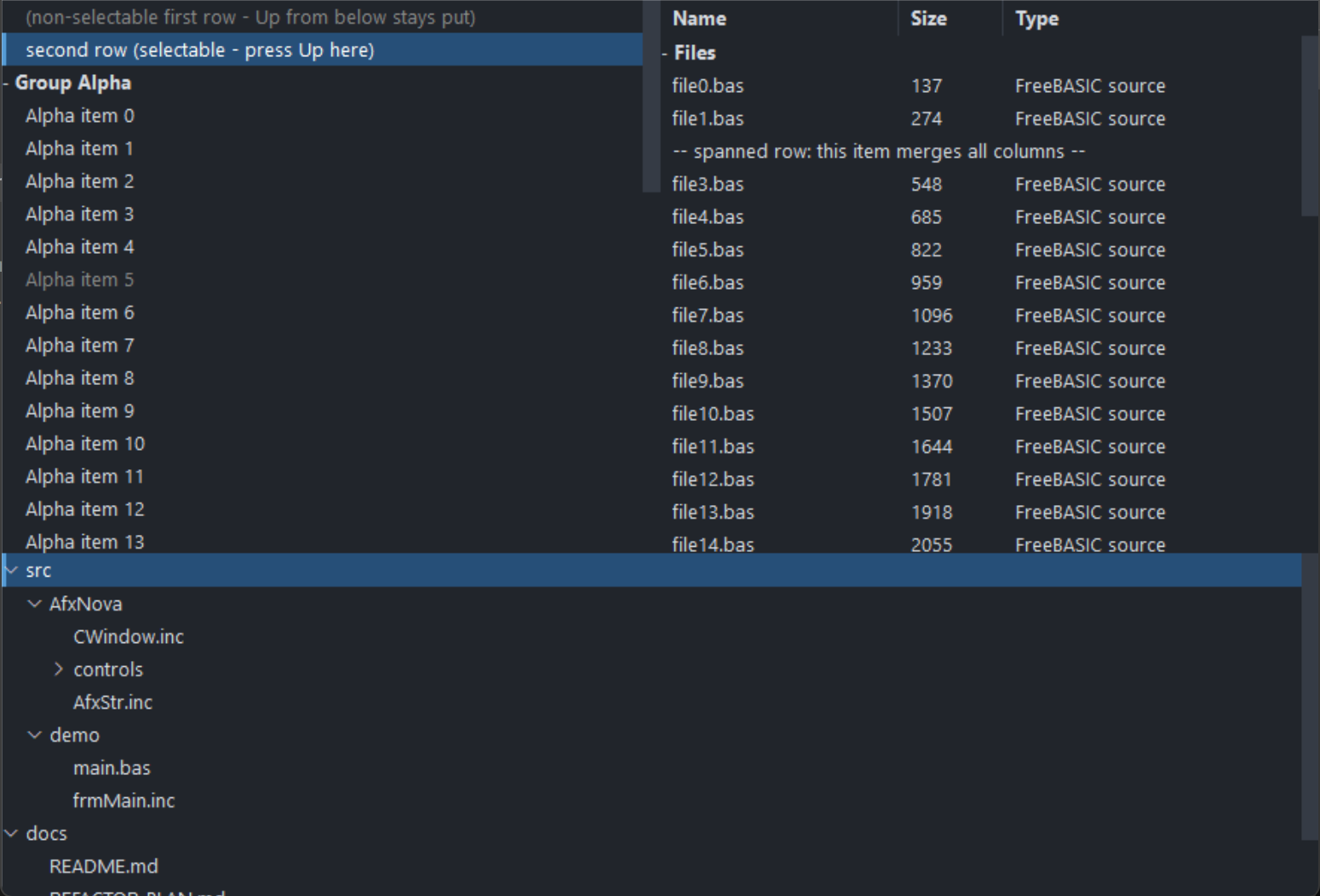

As a list and a report — main.exe:

The same control in its list modes. On the left a grouped single-column list — a collapsible group header, one selected row, and rows that keep their selection across a collapse. On the right, report mode: a PsColumnHeader band (Name / Size / Type), a group row, and an embedded PsVScrollBar down the right edge. Public indices in both are model indices; the visible index space never leaks out.

---

Requirements

Files to copy into your project:

All ten files are required even if you never define a column, never touch the scrollbar and never leave the default system tooltip: the control creates both children unconditionally, and PsListTree.bi / .inc include the tooltip pair themselves. They add no include line of their own to your host — see Include order below.

Only if you enable in-place label editing (PsListTree_EnableLabelEdit), copy four more — the editor is a PsTextBox, which uses PsPopupMenu for its right-click menu:

Include their implementations before PsListTree.inc (it calls into them), and add the pump call under In-place label editing. A control that never enables editing needs none of this.

AfxNova is required. The control is built on CWindow, and PsBufferPaint draws through AfxNova\CGdiPlus.inc. Sources include AfxNova relative to the workspace root (#include once "AfxNova\CWindow.inc"), so builds need the workspace root on the include path:

fbc64.exe -i "C:\dev" main.bas

Include order — this one bites. PsListTree.bi includes only PsBufferPaint.bi. It does not include PsVScrollBar.bi or PsColumnHeader.bi, yet it names types from both: CVSCROLL_DEFAULT_WIDTH and VScrollPaintCallbackSub from the scrollbar, and HDR_WidthChangedCallbackSub, HDR_ClickCallbackSub, HDR_AutoSizeCallbackFunc, HDR_PaintCallbackSub and HDR_TooltipCallbackFunc from the header. It therefore compiles only at an include site that has already pulled those two in. Include the four implementation files in exactly this order:

#include once "PsBufferPaint.inc"
#include once "PsVScrollBar.inc"
#include once "PsColumnHeader.inc"
#include once "PsListTree.inc"

If you enable label editing, add the editor's two implementations before PsListTree.inc:

#include once "PsBufferPaint.inc"
#include once "PsVScrollBar.inc"
#include once "PsColumnHeader.inc"
#include once "PsPopupMenu.inc"      ' editing only
#include once "PsTextBox.inc"        ' editing only
#include once "PsListTree.inc"

Get the order wrong and the errors point at PsListTree.bi, naming types rather than the missing include.

PsTipHost and PsTooltip are not in either list on purpose. PsListTree.bi includes PsTipHost.bi and PsListTree.inc includes PsTipHost.inc (which pulls in PsTooltip.inc), so the four files must be present on disk but you never name them. Adding #include once "PsTooltip.inc" yourself is harmless — the headers are #pragma once — and equally unnecessary.

The AfxNova headers come first, before any of the above:

#include once "windows.bi"
#include once "AfxNova\CWindow.inc"
#include once "AfxNova\AfxStr.inc"
#include once "AfxNova\AfxGdiplus.inc"
using AfxNova

GDI+ must be running before the first repaint and must outlive the last one. All geometry is rendered through GDI+, so bracket your message loop:

dim as ULONG_PTR gdipToken = AfxGdipInit()
' ... create windows, run the message loop ...
AfxGdipShutdown( gdipToken )

AfxGdipShutdown must come after every window is destroyed, because each repaint builds and tears down a PsBufferPaint.

Never name an identifier ok. GDI+ defines Ok = 0 as a Status enum value in namespace AfxNova, and hosts customarily say using AfxNova. An existing variable, parameter or function called ok becomes a duplicate definition the moment you adopt these files. Use bOK instead.

The message-pump filter is needed only for label editing. If — and only if — you call PsListTree_EnableLabelEdit, you must call PsListTree_FilterMessage( @msg ) in your loop, ahead of IsDialogMessage (see Tree view and in-place editing). Without editing there is nothing to call, and the only pump requirement is the ordinary dialog-manager one below.

For Tab navigation, call IsDialogMessage in your message pump. The row surface is a tabstop, and the container declares itself a control parent, so the dialog manager will step into the control — but only if you give it the chance:

do while GetMessage( @uMsg, null, 0, 0 )
    if uMsg.message = WM_QUIT then exit do
    if IsDialogMessage( hWndForm, @uMsg ) = 0 then
        TranslateMessage @uMsg
        DispatchMessage @uMsg
    end if
loop

Without it, mouse operation and the keyboard are unaffected once the list has focus — only Tab navigation is lost. The arrow keys are safe either way: the surface answers WM_GETDLGCODE with DLGC_WANTARROWS or DLGC_WANTCHARS, so IsDialogMessage does not steal them for tab-navigation.

Give something the focus at startup. IsDialogMessage acts only when the focused window is already a descendant of the window you pass it. A real dialog does this in WM_INITDIALOG; an ordinary window must call SetFocus on its first control itself. Skip it and the first Tab does nothing, which is indistinguishable from the tabstops being broken. Clicking the list also gives it focus, so this only affects a keyboard-first start.

---

Quick start

' Create it. The control is created zero-sized and hidden; place it yourself.
dim as HWND hList = PsListTree_Create( hWndParent, IDC_MYFORM_LIST )
SetWindowPos( hList, 0, x, y, cx, cy, SWP_NOZORDER or SWP_SHOWWINDOW )

' You MUST supply a row painter -- without one, rows are not drawn at all.
PsListTree_SetPaintCallback( hList, @MyList_PaintRow )

' Optional: observe mouse messages, supply tooltips, hear about selection moves.
PsListTree_SetMessageCallback( hList, @MyList_Message )
PsListTree_SetTooltipCallback( hList, @MyList_Tooltip )
PsListTree_SetSelChangeCallback( hList, @MyList_SelChange )

' Appearance. The font is borrowed -- you keep ownership and destroy it yourself.
PsListTree_SetBackColor( hList, theme.BackColor )
PsListTree_SetFont( hList, ghFont(GUIFONT_10) )
PsListTree_SetScrollBarColors( hList, theme.BackColorScrollBar, _
                             theme.ForeColorScrollBar, theme.ForeColorScrollBarHot )

' Selection mode. Both off = single-select.
PsListTree_SetExtendedSelect( hList, true )     ' Shift ranges / Ctrl toggles

' Bulk load, batched: one map rebuild and one repaint instead of one per row.
PsListTree_BeginUpdate( hList )
PsListTree_AddHeader( hList, "Group Alpha" )
for i as integer = 0 to 20
    PsListTree_AddString( hList, "Alpha item " & i, 1000 + i )
next
PsListTree_EndUpdate( hList )

' Silent -- the SelChange callback does not fire for this.
PsListTree_SetCurSel( hList, 1 )

And the row painter:

sub MyList_PaintRow( byval p as PSLISTTREE_PAINTINFO ptr )
    ' State priority is yours to choose: selected > hot > normal is the usual one.
    dim as COLORREF backclr, foreclr
    if p->isSelected then
        backclr = theme.BackColorSelect : foreclr = theme.ForeColorSelect
    elseif p->isHot then
        backclr = theme.BackColorHot    : foreclr = theme.ForeColorHot
    else
        backclr = theme.BackColor       : foreclr = theme.ForeColor
    end if
    p->b->SetForeColor( foreclr )
    p->b->SetBackColor( backclr )
    p->b->PaintRect( @p->rc )          ' the whole row: selection spans it

    if p->isHeader then
        dim as DWSTRING wszPrefix
        if p->isCollapsed then wszPrefix = "+ " else wszPrefix = "- "
        p->b->SetFont( ghFont(GUIFONTBOLD_10) )
        p->b->PaintText( wszPrefix & p->wszCaption, @p->rc, DT_LEFT )
    else
        dim as RECT rcText = p->rc
        rcText.left += 16
        p->b->PaintText( p->wszCaption, @rcText, DT_LEFT )
    end if
end sub

That is the whole minimum. To turn on report mode, add columns and show the band:

PsListTree_AddColumn( hList, "Name", 160 )
PsListTree_AddColumn( hList, "Size", 70 )
PsListTree_AddColumn( hList, "Type" )              ' the fill column (default: the last)
PsListTree_SetHeaderPaintCallback( hList, @MyHeader_PaintColumn )
PsListTree_SetHeaderBackColor( hList, theme.BackColorScrollBar )
PsListTree_SetHeaderFont( hList, ghFont(GUIFONTBOLD_10) )
PsListTree_ShowHeader( hList, true )

' Cell text: column 0 IS the row's text; columns 1..N are per-row cells.
dim as integer r = PsListTree_AddString( hList, "file0.bas" )
PsListTree_SetCellText( hList, r, 1, "137" )
PsListTree_SetCellText( hList, r, 2, "FreeBASIC source" )

Your row painter then sees p->columnCount > 0 and a p->cells array — fill the full row background first, then draw each cell inside its own rect:

dim as integer pad = PsColumnHeader_GetPadding( PsListTree_GetHeader( hList ) )
for c as integer = 0 to p->columnCount - 1
    dim as RECT rcCell = p->cells[c].rc
    rcCell.left += pad : rcCell.right -= pad
    p->b->PaintText( p->cells[c].wszText, @rcCell, DT_LEFT or DT_END_ELLIPSIS )
next

---

Concepts

The handle is a real HWND

PsListTree_Create returns an ordinary window handle, and every PsListTree_* function takes it. It is not an opaque type, so you can treat the control as the window it is — SetWindowPos to place and size it, ShowWindow to show it, GetDlgItem to find it by the CtrlID you passed at creation.

That handle is the container. It hosts three children: the row surface, the scrollbar and the header band. Every function resolves them internally. Never pass a child handle to a PsListTree_* function — results are undefined.

The children take consecutive control ids: the surface gets CtrlID, the scrollbar CtrlID + 1, the header CtrlID + 2. Leave that much room around whatever id you pick.

It is created zero-sized and hidden

PsListTree_Create gives the container the styles WS_CHILD, WS_CLIPSIBLINGS and WS_CLIPCHILDREN. WS_VISIBLE is deliberately absent, so a newly created control shows nothing until you size it and show it. That lets you build and configure the list — colours, font, columns, contents — before it is ever seen.

Row indices are model indices

Rows are addressed by the order they were added, independent of what is on screen. Collapsing a group does not renumber anything, and hidden rows keep working with every row API, selection included. Internally the control maps model rows to visible positions; that mapping never leaks out. Everything you receive — PSLISTTREE_PAINTINFO.itemID, PSLISTTREE_MESSAGEINFO.idx, PsListTree_GetCurSel, PsListTree_GetSelItems, PsListTree_GetTopIndex — is a model index too.

PsListTree_GetCount is every row in the model. PsListTree_GetVisibleCount is the rows currently on show. They differ exactly when something is collapsed.

Groups, and trees

Every row carries a tree level (0 = top-level), so the control does hierarchies of any depth — see Tree view and in-place editing below. The classic flat group is just the depth-1 case: a header (PsListTree_AddHeader) is a level-0 parent and the items (PsListTree_AddString) after it are its level-1 children, hidden when the header collapses. Build deeper structure with PsListTree_AddNode. Collapsing any node hides its entire subtree.

Headers are ordinary rows in every other respect: they are selectable, they are returned by PsListTree_GetSelItems, and they carry itemData. Use PsListTree_IsHeader to tell them apart — "header" is now just a styling flag, independent of whether a node has children.

Clicking a header toggles its group and leaves the selection alone — a fold gesture, not a select. (A plain AddNode parent instead toggles only via its twisty; the label selects.)

Selection lives on the rows

Selection is a per-row flag in the model, not a bit inside a system listbox. That is what makes it survive collapse and expand, and it is why a hidden row can be selected. Three modes, and the two flags are mutually exclusive:

Setting either mode clears the other. PsListTree_GetCurSel reports the focused row (the caret), which is not the same as "the selection" once more than one row can be selected — use PsListTree_GetSelItems for that.

Everything is painted in one pass

One WM_PAINT on the surface fills the whole client with BackColor and then calls your paint callback once per visible row, all into a single buffer. There is no per-row message and no per-row buffer.

p->rc and the cell rects are in the surface's client coordinates, not in a row-sized buffer starting at y = 0. Derive everything from p->rc and you never have to care.

Rows below the last one are not painted at all; the control's background already covers that strip, which is why an empty list needs no special handling from you.

If you set no paint callback, no rows are drawn — only the background. That is the one callback the control genuinely needs.

The scrollbar manages itself

The control creates a PsVScrollBar, positions it on the right edge, keeps its range in step with the model, and auto-hides it whenever the rows fit — at which point the row surface reclaims the full client width. You never call SetRange or SetPos.

What is left to you is appearance: PsListTree_SetScrollBarWidth, PsListTree_SetScrollBarColors, PsListTree_SetScrollBarPaintCallback, or PsListTree_GetScrollBar for direct PsVScrollBar_* calls.

The mouse wheel is handled on the row surface, not by the bar: one notch scrolls SPI_GETWHEELSCROLLLINES rows (re-read per message, and capped at one page), with the sub-notch remainder accumulated so a precision touchpad scrolls smoothly rather than in jumps. The thumb follows.

Columns are optional, and the header band owns them

With no columns defined, the control paints as a single-column list and your painter sees p->columnCount = 0.

Define columns and one thing changes: item rows arrive with a cells array giving each column's x-span. Group-header rows never get cells — they always span the full width, so columnCount is 0 for them regardless.

The column model lives in the embedded PsColumnHeader, which is the single store for widths, minimums and the fill designation. The PsListTree_*Column* functions are wrappers that delegate to it. See PsColumnHeader.md for the width, minimum-width and fill rules.

Column definitions and cell text are independent. Cell storage is sparse and per row, so you can populate rows before or after defining columns; a cell never set reads back "". The band itself starts hidden — columns still lay out and rows still paint in columns, you simply get no interactive header strip until PsListTree_ShowHeader( h, true ).

The header band spans the full container width, over the scrollbar strip, so column geometry never shifts when the scrollbar auto-hides.

Column 0 is the row's text

PsListTree_GetText/SetText and the cell functions with col = 0 address the same storage. Columns 1..N live in the row's own sparse cell array. This is why a list written before columns existed keeps working unchanged.

Inserting or deleting a column shifts every row's cell storage across that alias — insert a column at 0 and each row's text becomes its column 1 cell.

Spanned rows

An ordinary, selectable row can be made to paint as one cell across the whole column band instead of one cell per column — PsListTree_SetRowSpanColumns( h, row, true ). Use it for a section note, a "no results" line, or any wide message row that lives among columned rows.

Its text stays in column 0 (PsListTree_GetText / GetCellText( h, row, 0 )). At paint time the callback receives p->columnCount = 1 with p->isSpanned = true; cells[0].rc runs from column 0's own left to the last column's right (the same left a normal column-0 cell gets, so the spanned text lines up under column 0), and cells[0].wszText is the column-0 text. A painter that already loops for c = 0 to columnCount - 1 draws it correctly with no new branch — it simply draws one wide cell. Selection and hover still fill the full p->rc, and the row selects, hot-tracks and keyboard-navigates like any other.

Two details worth knowing:

• With no columns defined, a spanned row is already full-width (columnCount = 0); the flag only advertises the intent via p->isSpanned.
• A spanned row is exempt from the column-shift above: inserting or deleting a column never moves its text out of column 0, so its caption cannot be silently blanked.

Group headers are not spanned rows — they have their own isHeader path and carry isSpanned = false.

Drag-and-drop reordering

Opt in with PsListTree_SetDragReorder( h, true ) (default OFF) and the user can drag rows to new positions inside the same list:

• What drags — press an item and move past the system drag threshold. If the pressed row is part of a multi-selection, the whole selection moves (gathered contiguously at the drop, keeping its relative order, even if it was non-contiguous); otherwise just that one row. Headers and non-selectable rows are never draggable.
• Where it drops — a horizontal insertion line shows the target gap. Dropping on a header highlights it and inserts the block as that header's first children (a collapsed header expands on drop). Because grouping is positional, a row dropped into another group simply belongs to it afterward.
• Feedback — the insertion line / header highlight paints in SetDragIndicatorColor (accent blue by default). Dragging near the top/bottom edge auto-scrolls so off-screen targets are reachable. Esc — or any loss of mouse capture — cancels the drag with no move.

The control moves its own model and fires two optional callbacks: CanDrop just before (return FALSE to reject — it receives the source rows and the drop-target row's ROWINFO), and DragDrop just after (the block's new first row and count, so you can resync parallel data via itemData). This is the only gesture in the control that takes mouse capture, and only while a drag is actually in progress.

PsListTree_MoveRows( h, srcRows(), insertBefore ) performs the same reorder programmatically — silent (no DragDrop), like every other setter.

Non-selectable rows

A row can be made non-selectable — PsListTree_SetRowSelectable( h, row, false ). It then cannot be selected or focused by any path, and keyboard navigation skips over it:

• Mouse — clicking it changes nothing (no selection, no focus). The host still sees the raw click through the message callback.
• Keyboard — arrows, PageUp/Down, Home and End step past it to the nearest selectable row. A single-step arrow that would only reach non-selectable rows leaves the caret where it is; the paging and Home/End keys always land on some selectable row if one exists.
• Programmatic — SetCurSel returns -1 and no-ops, SetSel( …, true ) returns FALSE, SelectAll skips it, and a Shift-range selects every selectable row it spans but not this one.

The rule is a hard invariant: a non-selectable row is never selected and never focused. If you mark a row non-selectable while it is the current/selected row, its selection is cleared and the caret is dropped (silent, repaints). To select it again, clear the flag first.

The paint callback gets p->isSelectable, so a painter can grey the row — that is cosmetic; the control does the blocking regardless of how you draw it. The flag is independent of the others: a row can be spanned and non-selectable at once (a section note that fills the width and can't be picked).

Batch bulk changes

Every model mutator rebuilds the visible map and repaints. Wrap a bulk load in PsListTree_BeginUpdate / PsListTree_EndUpdate and that collapses to one rebuild and one repaint, turning an O(n²) load into O(n). The pairs nest.

Programmatic changes are silent

PsListTree_SetCurSel, SetSel, SelectAll and Clear never fire the SelChange callback. It reports user action only — a click, or a keyboard move. This follows Win32's own LB_SETCURSEL / LBN_SELCHANGE split, and it means you can call the setters from inside your own handler without recursing.

The same rule holds for column widths: PsListTree_SetColumnWidth repaints but fires no resize callback. Only a user drag or an autosize notifies.

Pixels, and who scales them

Row height and header height are the trap in both directions: hand them a value you have already scaled and it gets scaled twice.

Keyboard

The row surface handles these itself and consumes them, so they never reach the message callback:

Shift and Ctrl modify the arrow and page moves the same way they modify a click. Because WM_KEYDOWN never reaches the message callback, SelChangeCallback is the only way to observe keyboard navigation.

Every move ensures the new focus row is on screen.

Hover, tooltips and focus

Exactly one row is hot at a time. Hover state is cleared both by WM_MOUSELEAVE and by a 100 ms cursor poll, because WM_MOUSELEAVE is not reliably delivered on fast exits.

Tooltips are resolved on demand: with no tooltip callback the hovered row's own text is used; with one, whatever it returns, and "" suppresses the tip entirely. The tip is popped when the hot row changes so the next hover re-queries.

The tip is drawn by the system tooltip unless you move the instance onto the owner-drawn PsTooltip with PsListTree_SetTooltipMode. That choice changes only the drawing and the timing — never the text, which comes from the rule above either way. See Tooltips under the API reference.

A left click calls SetFocus on the row surface before your message callback runs. If the list must not hold focus — an autocomplete popup over an editor, say — put the focus back from your callback.

Lifetime

The control frees itself, its tooltip and all three children when its window is destroyed. Fonts you pass in stay yours: the control stores the HFONT and never destroys it.

---

Tree view and in-place editing

The same control, driven as a treeview: unlimited depth, control-drawn twisties, per-depth indent, and label editing. tree_demo.exe (build it with build_tree.bat) is a focused harness for exactly these features; main.exe (from build.bat) exercises everything else.

Every row carries a tree level (0 = top-level), and the tree lives in ordinary array order: a node's whole subtree is the contiguous run of deeper-level rows right after it, so parent, child count and "has children" are all derived — there is no separate tree object to keep in sync. Collapsing a node hides its entire subtree, at any depth. The old flat header/item model is just the depth-1 case of this, so nothing about the existing API changed.

Building a tree

PsListTree_AddNode( h, parentRow, Text ) appends a child under parentRow (-1 = a new top-level node); PsListTree_InsertNode places one at a specific child position. Query the shape with PsListTree_GetLevel / GetParent / GetChildCount / HasChildren.

dim as integer proj = PsListTree_AddNode( hTree, -1,   "MyProject" )
dim as integer src  = PsListTree_AddNode( hTree, proj, "src" )
                      PsListTree_AddNode( hTree, src,  "main.bas" )
dim as integer eng  = PsListTree_AddNode( hTree, src,  "engine" )
                      PsListTree_AddNode( hTree, eng,  "render.bas" )

Twisties and indentation are opt-in

Both default OFF, so a control that only builds flat lists or legacy groups is visually unchanged. Turn them on for a tree:

PsListTree_SetTreeIndent( hTree, true )         ' indent column 0 by depth
PsListTree_ShowTwisty( hTree, true )            ' control draws the chevron + owns its hit-rect
PsListTree_SetTwistyFont( hTree, hSymbolFont )  ' a Segoe Fluent Icons HFONT

With the twisty on, clicking it toggles the node without touching the selection; clicking the label selects. (A legacy AddHeader row keeps its whole-row toggle.) In your row painter, draw your column-0 text at p->rc.left + p->indent (that offset already includes the reserved twisty band, so parents and leaves at the same depth line up). Only column 0 is indented — other columns keep their x. To draw your own glyph instead of the built-in chevron, call ShowTwisty(false) and read p->rcTwisty / p->level / p->hasChildren / p->isExpanded.

Keyboard: Left collapses an expanded node or jumps to its parent; Right expands a collapsed node or steps to its first child — at any depth.

In-place label editing

Opt in with PsListTree_EnableLabelEdit( h, true ). An edit starts on F2 (on the focused row), on PsListTree_BeginEdit, or — with PsListTree_SetClickToEdit( h, true ) — on a click of the row that is already current (explorer rename). Enter commits, Esc cancels, clicking away commits. The editor is a single-line PsTextBox created over the caption and destroyed on commit or cancel.

Any column is editable, but only one has a gesture. F2, Enter and click-to-edit all open whichever column PsListTree_SetEditColumn names — column 0, the caption, by default. To edit a different column from a click, resolve which one the click landed in with PsListTree_GetColumnRect from your message callback and call PsListTree_BeginEdit( h, row, col ), which is never constrained by the gesture column. Enter opens an editor only when PsListTree_SetEnterEdits( h, true ) is on; it is off by default because claiming Enter would otherwise take it from your dialog's default button.

Theme the editor with PsListTree_SetEditColors — the control creates it lazily and owns it, so there is no handle for you to reach, and without this it renders black on white whatever the list around it looks like. PsListTree_SetEditTextInset lines its text up with the inset your painter uses for cell text, and PsListTree_SetEditSelectAll( h, false ) puts the caret at the end instead of selecting everything.

Pump obligation. A host that enables editing MUST call PsListTree_FilterMessage( @msg ) in its message loop, ahead of IsDialogMessage — otherwise IsDialogMessage eats Enter (as "press the default button") and Esc (as "cancel") before they reach the editor. A host that never enables editing needs no pump call.

do while GetMessage( @msg, null, 0, 0 )
    if msg.message = WM_QUIT then exit do
    if PsListTree_FilterMessage( @msg ) then continue do      ' editing hosts: BEFORE IsDialogMessage
    if IsDialogMessage( hWnd, @msg ) = 0 then
        TranslateMessage( @msg ) : DispatchMessage( @msg )
    end if
loop

BeginLabelEdit can veto an edit before it starts; EndLabelEdit receives the new text and can reject it (the row keeps its old caption). Register both under Callback registration; the typedefs are in Callbacks.

---

Behaviour and limits

Firm properties of the control, not settings:

• Nothing is drawn without a paint callback. The background is filled, and that is all.
• All rows are the same height. There is no per-row height, so a group header cannot be taller than its items.
• Legacy group headers do not nest, though tree nodes do. AddHeader + AddString builds a depth-1 group that runs to the next header; for real depth use AddNode / InsertNode.
• The data setters do not repaint; the text setters do. PsListTree_SetText and SetCellText invalidate (coalesced by BeginUpdate / EndUpdate, so a wrapped bulk load still costs one repaint). SetItemData and SetItemDataExtra change the model and return — they draw nothing, which is right, since neither is on screen unless your painter puts it there. Call PsListTree_Refresh if yours does.
• PsListTree_SetBackColor does not repaint either. It stores the colour and returns the previous one. Set it before showing the control, or follow it with PsListTree_Refresh.
• Group-header rows never receive cells. They span the full width even in report mode, so columnCount is 0 for them.
• The control does not clip between cells. Cell rects are handed to you as computed; drawing text wider than its cell will spill into the next one. DT_END_ELLIPSIS is the answer.
• The control never sorts. PsListTree_SetColumnClickCallback is the hook; reordering the rows is yours.
• The cells pointer is valid only during the paint callback. It points at control-owned scratch reused for every row. Copy anything you need to keep.
• Cell text survives PsListTree_ClearColumns. Clearing column definitions does not clear row data — the two are deliberately independent.
• PsListTree_GetColumnWidth on the fill column returns its laid-out width, not the stored one. Setting a width on the fill column stores it but has no visual effect until that column stops being the fill.
• The message callback's return value has no effect for the button messages. For WM_LBUTTONDOWN, WM_LBUTTONUP, WM_RBUTTONDOWN and WM_LBUTTONDBLCLK the surface consumes the message either way, and for the button-down the control's own selection or collapse handling has already run by the time you are called. Returning TRUE suppresses DefWindowProc only for WM_MOUSEMOVE, WM_MOUSEHOVER, WM_MOUSELEAVE and WM_MOUSEWHEEL.
• PSLISTTREE_MESSAGEINFO.idx is filled only for the button and hover messages. It stays -1 for WM_MOUSEMOVE, WM_MOUSELEAVE and WM_MOUSEWHEEL.
• Clicks that land below the last row do not reach the message callback at all, for any button message.
• The wheel is reported only when it actually scrolls. A wheel gesture against the end of the list does not call the message callback.
• The header band's own WidthChanged slot belongs to the control. Subscribe with PsListTree_SetColumnResizeCallback, never with PsColumnHeader_SetWidthChangedCallback on the handle from PsListTree_GetHeader. Every other header callback passes straight through.
• No horizontal scrolling. Columns wider than the client run off the right edge and are clipped there.
• No checkbox column, no icons. Anything of that kind is drawn by your painter and driven by your message callback. (In-place editing and drag-reorder are built in, both opt-in.)
• Only one column has an editing gesture. F2, Enter and click-to-edit all open whichever single column PsListTree_SetEditColumn names (default 0). Editing any other column is programmatic: resolve the clicked column with PsListTree_GetColumnRect and call PsListTree_BeginEdit with it.
• Switching tooltip backend cannot change what a tip says. Both backends resolve text through the same rule — your tooltip callback if set, otherwise the row's own text. The backend decides only how the tip is drawn and driven.

---

API reference

Every function takes the handle from PsListTree_Create as its first argument, written h in the tables below.

Creation

Content

Add* and Insert* return the new row's model index, or -1 on failure.

Refresh, or invalidate?

Refresh is for a change to the model's shape — rows added or removed, a node collapsed, the order changed. It rebuilds the visible map (O(rowCount)), re-derives the scroll position, syncs the scrollbar and repaints with a background erase.

None of that is needed when only what a row says has changed. On a list that updates continuously — a price grid, a progress table, a log tail — doing it per update is the difference between a control that idles and one that does not. Invalidate the affected rows instead, and note the erase is skipped too, so a row that repaints under the user's eyes does not flash.

What it does not save, because the name invites the wrong assumption: the surface's WM_PAINT redraws every row currently on screen regardless of the update rect. It has to — the buffer covers the whole client and is blitted whole, so a paint that skipped rows outside the update region would blit an unpainted band over them. The saving is the rebuild, the scroll re-derivation, the scrollbar sync and the erase; not the row loop, which is bounded by the window height rather than by the model.

A range whose ends are far apart repaints the rows between them as well. That is deliberate: one region and one WM_PAINT beats a scattered region and several.

You may not need to call either

SetText and SetCellText are already row-scoped: they repaint just the row they wrote, because cell text cannot move a row, hide one, or change how many there are. Inside a BeginUpdate/EndUpdate batch they widen a dirty span that EndUpdate flushes as one invalidate.

A structural change anywhere in the batch — a row added or deleted, a node collapsed, a reorder — outranks that span and EndUpdate does the full refresh, because the span describes a model that no longer exists. So does a batch in which nothing notified at all, which keeps the old contract for a host that mutates rows through a ROWINFO pointer and wraps BeginUpdate/EndUpdate around it purely to force a repaint.

The explicit calls are for the case the control cannot see: a row whose painted appearance depends on something outside its stored text — a colour driven by host state, a value the paint callback reads from your own model.

Groups and trees

Collapse, expand and toggle act on anything that can fold — a legacy header or any node with children — and return FALSE for a leaf or an invalid index. The tree queries read the derived structure and work whether the nodes were built with AddNode or with AddHeader/AddString.

Selection and state

Drag-and-drop reordering

Opt-in; see the Drag-and-drop reordering concept above. Register the callbacks with the functions under Callback registration.

Appearance

Tooltips

The control ships on the system tooltip (comctl32) and stays there unless you ask otherwise. PsListTree_SetTooltipMode( h, PSTIP_MODE_PS ) moves that one instance onto PsTooltip instead: owner-drawn and themeable, it word-wraps to a maximum width without a hand-sent TTM_SETMAXTIPWIDTH, and it does not subclass the control it serves.

The default is deliberate rather than timid — PsTooltip's colour defaults are dark and the system tip is light, so a control that switched on its own would put a dark tip on a light form.

Switching backend does not change what a tip says. Text resolution is the same either way: your TooltipCallback if one is set, otherwise the row's own text, with "" suppressing the tip. Only the drawing and the driving differ.

All three delays are honoured by both backends, and are stored rather than pushed straight at the live tooltip, so a delay set before a mode switch is still in force after it. A delay you never set keeps the backend's own value, derived from the system double-click time. A delay set to 0 is a real request for "no delay" and survives a switch as such.

Theming every tip at once

Per-instance theming through GetPsTooltipHandle works, but it is rarely what you want. The intended way to use PSTIP_MODE_PS is to set the process-wide defaults before any control is created, so every tip in the application matches without the host tracking handles:

dim as PSTOOLTIP_COLORS tipColors
tipColors.BackColor = theme.BackColor
tipColors.ForeColor = theme.ForeColor
PsTooltip_SetDefaultColors( @tipColors )
PsTooltip_SetDefaultFonts( ghFont(GUIFONT_9), ghFont(GUIFONTBOLD_10), ghFont(SYMBOLFONT_10) )
PsTooltip_SetDefaultMaxWidth( 320 )
PsTooltip_SetDefaultDelays( 400, 8000, 100 )

' ... then create the control and opt it in:
PsListTree_SetTooltipMode( hList, PSTIP_MODE_PS )

PsTooltip_SetDefaultStyle is available on the same footing, and PsTooltip_ClearDefaults disarms the lot. The fonts are borrowed: you keep ownership and must outlive every tip that uses them — the one real hazard here, since you are promising them to controls you never see. See PsTooltip.bi for the colour struct and the style constants.

Border

Off by default. Switch it on to give the list the same chrome a PsTextBox has, so a list and a text field stacked on one settings page read as the same kind of control:

PsListTree_SetBorderColor( hList, PsTextBox_GetBorderColor( hField ) )
PsListTree_SetBorderWidth( hList, 1 )

The frame is drawn by the control's outer window, and the row surface, the scrollbar strip and the column header band are all inset by the width, so nothing paints over it. Corners are square, matching a PsTextBox at its default corner radius of 0.

The width is in raw pixels and is never DPI-scaled — a chrome hairline should stay a hairline at every scale (the same rule PsTextBox's border and PsMenuBar's separator follow). Do not pre-scale it.

There is no focus-border colour. A PsTextBox switches to one when its editor has the caret; a list has no caret to signal.

Tree appearance

All OFF / zero-effect by default, so a flat or grouped list is untouched. Widths are unscaled units, DPI-scaled internally. See Tree view and in-place editing.

In-place label editing

Opt-in. Enabling it establishes a pump obligation: call PsListTree_FilterMessage in the loop, before IsDialogMessage. See Tree view and in-place editing.

Scrollbar

Nothing here is required; the control creates, positions, ranges and auto-hides the bar itself.

Columns and the header band

All optional. Widths and minimum widths are pixels; see PsColumnHeader.md for the layout rules these delegate to.

Callback registration

Passing 0 to any callback setter clears it.

Geometry and internals

These are declared in PsListTree.bi rather than hidden, so they are listed here for completeness. Only the first is something a host has a reason to call.

The remaining four take a PSLISTTREE ptr — the control's private state struct, which a caller outside the implementation cannot form. They are internal machinery, visible only because PSLISTTREE.Refresh is defined in the header and has to call them:

---

Colors

There is no colour struct. The control paints only its own background; every row pixel is yours, drawn from whatever palette your host already has. That is deliberate — a list of this kind is skinned by its host, and a fixed struct of row colours would only get in the way.

What the control itself owns:

Which colour wins

The control does not decide; it hands you the state flags and you resolve them. It does guarantee what can be true at once, which is what makes a precedence order well defined:

isSelected   >   isHot   >   plain

with isFocused drawn as an accent on top of whichever of those applied, because the caret row and the selection are different things once more than one row can be selected.

• At most one row is isHot at any moment, and it clears deterministically when the cursor leaves.
• isHot and isSelected can both be true — the cursor resting on a selected row.
• isFocused marks the caret row and is independent of isSelected: in checklist mode the arrow keys move the caret without selecting anything.
• isHeader and isCollapsed describe the row, not its mood. isCollapsed is meaningful only when isHeader is TRUE.

What draws what

In report mode, fill the full row rect first so selection and hover span the row listview-style, then draw each cell inside cells[i].rc.

---

Callbacks

The four PsListTree typedefs are unprefixed — PaintCallbackSub, MessageCallbackFunc, TooltipCallbackFunc and SelChangeCallbackSub occupy those exact names. If you are combining these files with other controls, that is a name collision to check for.

Row paint

type PaintCallbackSub as sub( byval p as PSLISTTREE_PAINTINFO ptr )

Draws one row. Called once per visible row on every repaint, so keep it cheap. Paint through p->b — the control's buffer for this repaint — and never touch a screen DC. The control has already filled the client with BackColor and selected the control font into the buffer; you may override the font per row.

PSLISTTREE_PAINTINFO:

columnCount is 0 and cells is null whenever the row should paint as one full-width cell with no columns to fill: no columns are defined, or the row is a group header.

A spanned row (isSpanned = true) over defined columns instead arrives with columnCount = 1 and a single cells[0] whose rect covers the whole column band — so a painter that loops for c = 0 to columnCount - 1 draws it as one wide cell unchanged. (With no columns defined it is already full-width, columnCount = 0, and only isSpanned marks the intent.) Whenever you fill the row background from p->rc before drawing cells, selection and hover cover the whole row in every case.

PSLISTTREE_CELLINFO:

The cells array is control-owned scratch, valid only for the duration of the callback. It is reused for every row. Copy anything you need to keep.

The control does not clip between cells. Text wider than its cell spills into the next one; use DT_END_ELLIPSIS.

Message

type MessageCallbackFunc as function( byval m as PSLISTTREE_MESSAGEINFO ptr ) as boolean

Observes mouse messages on the row surface. Return TRUE to suppress the control's remaining handling of that message, FALSE to let it proceed.

PSLISTTREE_MESSAGEINFO:

Which messages arrive, and what the return value actually does:

The button messages are consumed by the surface either way, which is why the return value cannot change them. More importantly, the control's own handling has already happened by the time WM_LBUTTONDOWN reaches you: focus has been taken, and the click's selection change or header collapse has been applied. Treat this callback as an observer.

WM_KEYDOWN is not reported here — the surface consumes the navigation keys itself. Use the SelChange callback.

Tooltip

type TooltipCallbackFunc as function( byval hListControl as HWND, byval row as integer, byval col as integer ) as DWSTRING

Supplies the tooltip text for a model row, on demand — called only when a tip is about to show. Return "" for no tooltip on that row. With no callback installed, the row's own text is used. hListControl is the control handle, not the surface. col is the column the mouse was last over (0-based). A list with no header columns is one implicit column, so it reports 0; with columns defined, -1 means the cursor was past the last column.

Selection changed

type SelChangeCallbackSub as sub( byval hListControl as HWND, byval row as integer )

The user moved the selection — by clicking a row, or by moving the caret with the keyboard (arrows, PageUp/Down, Home/End, Left to a header, Space). row is the model index of the newly focused row, or -1 if there is none. Fires after the control's state is updated, so PsListTree_GetCurSel already agrees.

This is the only way to observe keyboard navigation, because the control consumes WM_KEYDOWN itself and it never reaches the message callback. A mouse-only host can keep using WM_LBUTTONUP in the message callback instead.

It does not fire for PsListTree_SetCurSel, SetSel, SelectAll or Clear, which is what makes those safe to call from inside this handler. Nor does it fire when the user re-selects the row that is already current, or when a clamped arrow key does not actually move the caret — only a real change notifies.

Row activated

type ActivateCallbackSub as sub( byval hListControl as HWND, byval row as integer )

The row's default action: a double-click on it, or Enter while it is the focused row. One callback covers both because they are one concept (a listview's LVN_ITEMACTIVATE). row is the model index.

User gestures only — never a programmatic selection change. A non-selectable row is refused for the same reason every selection path refuses it: a row the user cannot land on cannot be the one they activated.

Two things follow from installing it. Setting it is what makes the control claim Enter — with no callback set, Enter is left alone and reaches your dialog's default button as before. And PsListTree_SetEnterEdits wins over it: a list whose Enter opens an editor does not also activate. Double-click still activates in that configuration.

Two things suppress the double-click half of the gesture. PsListTree_PreventDoubleClick turns the double-click into a plain click, and a message callback that returns TRUE for WM_LBUTTONDBLCLK claims it — activation is fired after the message callback, so a host that handles the message itself never gets both.

Label editing and expand/collapse

type BeginLabelEditCallbackFunc as function( byval h as HWND, byval row as integer ) as boolean
type EndLabelEditCallbackFunc   as function( byval h as HWND, byval row as integer, byval newText as DWSTRING ) as boolean
type ExpandCollapseCallbackSub  as sub( byval h as HWND, byval row as integer, byval bExpanded as boolean )

BeginLabelEdit fires just before an in-place edit begins; return FALSE to veto it (no editor appears). EndLabelEdit fires when the user commits (Enter or focus loss), with the edited text; return FALSE to reject it and keep the old caption, TRUE (or leave it unset) to write it. Neither fires on Esc-cancel. newText is byval — never take it byref const (a copied const DWSTRING corrupts the heap).

ExpandCollapse fires when the user folds a node — by clicking its twisty, by Left/Right, or by clicking a legacy header — with the new state in bExpanded. Like the other user-action callbacks it is silent for the programmatic CollapseRow / ExpandRow / ToggleRow / SetNodeCollapsed / CollapseAll / ExpandAll setters, so you can drive those from inside it.

Drag and drop

type PSLISTTREE_DROPINFO
    hList        as HWND
    srcRows      as integer ptr           ' the MODEL indices being dragged (srcCount of them)
    srcCount     as integer
    insertBefore as integer               ' MODEL index the block will land before (0..rowCount)
    onHeader     as boolean               ' TRUE = dropped on a header (block becomes its first children)
    targetRow    as integer               ' MODEL index of the drop-target row, or -1 at the list end
    targetInfo   as PSLISTTREE_ROWINFO ptr ' the target row's ROWINFO (read-only), or NULL at the end
end type

type CanDropCallbackFunc as function( byval p as PSLISTTREE_DROPINFO ptr ) as boolean
type DragDropCallbackSub as sub( byval hList as HWND, byval newFirstRow as integer, byval count as integer )

CanDrop fires just before a user drop commits. Return FALSE to reject it — the model is left untouched. The DROPINFO is a snapshot valid only for the duration of the call: srcRows points at control-owned scratch and targetInfo at a live ROWINFO, so copy anything you need to keep and do not mutate the model from inside. Unset = every drop is allowed.

DragDrop fires just after a user drop moves rows. newFirstRow is the model index the moved block now starts at and count is how many rows moved — walk newFirstRow .. newFirstRow+count-1 with the getters (or itemData) to resync a parallel model. It does not fire for PsListTree_MoveRows (programmatic moves are silent, like every other setter).

Header callbacks

The five header callbacks registered through PsListTree_Set* use the HDR_* typedefs and are documented in full in PsColumnHeader.md. Two notes specific to using them through PsListTree:

• PsListTree_SetColumnResizeCallback is the only correct door for resize notifications. The header's own WidthChanged slot is taken by this control, which needs it to repaint the rows on every live drag before re-broadcasting to you.
• The hHeader parameter these callbacks receive is the header window, not the control. Use GetParent if you need the list.

---

Constants

Defined in PsListTree.bi:

The tooltip backend values passed to PsListTree_SetTooltipMode come from PsTipHost.bi:

Defaults the control starts with:

The fill-column designations passed to PsListTree_SetFillColumn come from PsColumnHeader.bi:

---

Related controls

PsListTree creates and owns two other controls. You never create either one, and both are destroyed with the list. It also holds a PsTooltip when you opt the instance into PSTIP_MODE_PS — see Tooltips; that one is not a child window and is reached with PsListTree_GetPsTooltipHandle.

Both handles are escape hatches for appearance and queries. Two things you must not do through them: do not set the header's WidthChanged callback (use PsListTree_SetColumnResizeCallback), and do not call PsVScrollBar_SetRange or PsVScrollBar_SetScrollCallback — the list owns the range and the scroll notification, and overwriting either desynchronises the thumb from the list.

PsColumnHeader also works standalone; it knows nothing about list boxes.

Running the demo

The demo loads Segoe Fluent Icons at startup via AddFontResourceEx, and aborts if the font is absent — the control family draws its glyphs from it.

The font ships with Windows 11 but is Microsoft's, not ours, so it is not redistributed here. Copy it in once before building:

copy C:\Windows\Fonts\SegoeIcons.ttf SegoeFluentIcons.ttf

Note the rename: Windows stores the file as SegoeIcons.ttf, while the family name is "Segoe Fluent Icons". On Windows 10 the font is not present at all.

Licence

Mozilla Public License 2.0.

MPL-2.0 is file-level copyleft, chosen deliberately for a drop-in control:

• You may use this in closed-source software, commercial or otherwise. §3.2 permits static linking with no additional conditions.
• If you modify these files, publish those files' changes. The obligation is per-file — your own sources are unaffected however tightly they are combined with these.
• The Exhibit B "Incompatible With Secondary Licenses" notice is not applied, which keeps this GPL-compatible.
