PsOptionButton

An owner-drawn option button (radio button) for FreeBASIC + Win32, built on AfxNova and PsBufferPaint.

A circle and an optional caption, side by side, with a focus ring around the pair. Unchecked draws a thin outlined ring; checked draws an accent-filled disc with a contrasting dot on it. No chrome, no animation, no group box.

The control owns mutual exclusion. Option buttons that share a parent window and a group id form a group, and checking one unchecks the rest. You do not write that logic, and you do not call anything after a click to keep the group consistent.

It also implements the keyboard behaviour a Windows radio group actually has, which is the part most hand-rolled radio buttons get wrong: the whole group is a single tab stop, and the arrow keys move the selection within it. Tab moves past the group, not through it.

Repository: <https://github.com/PaulSquires/PsOptionButton>

---

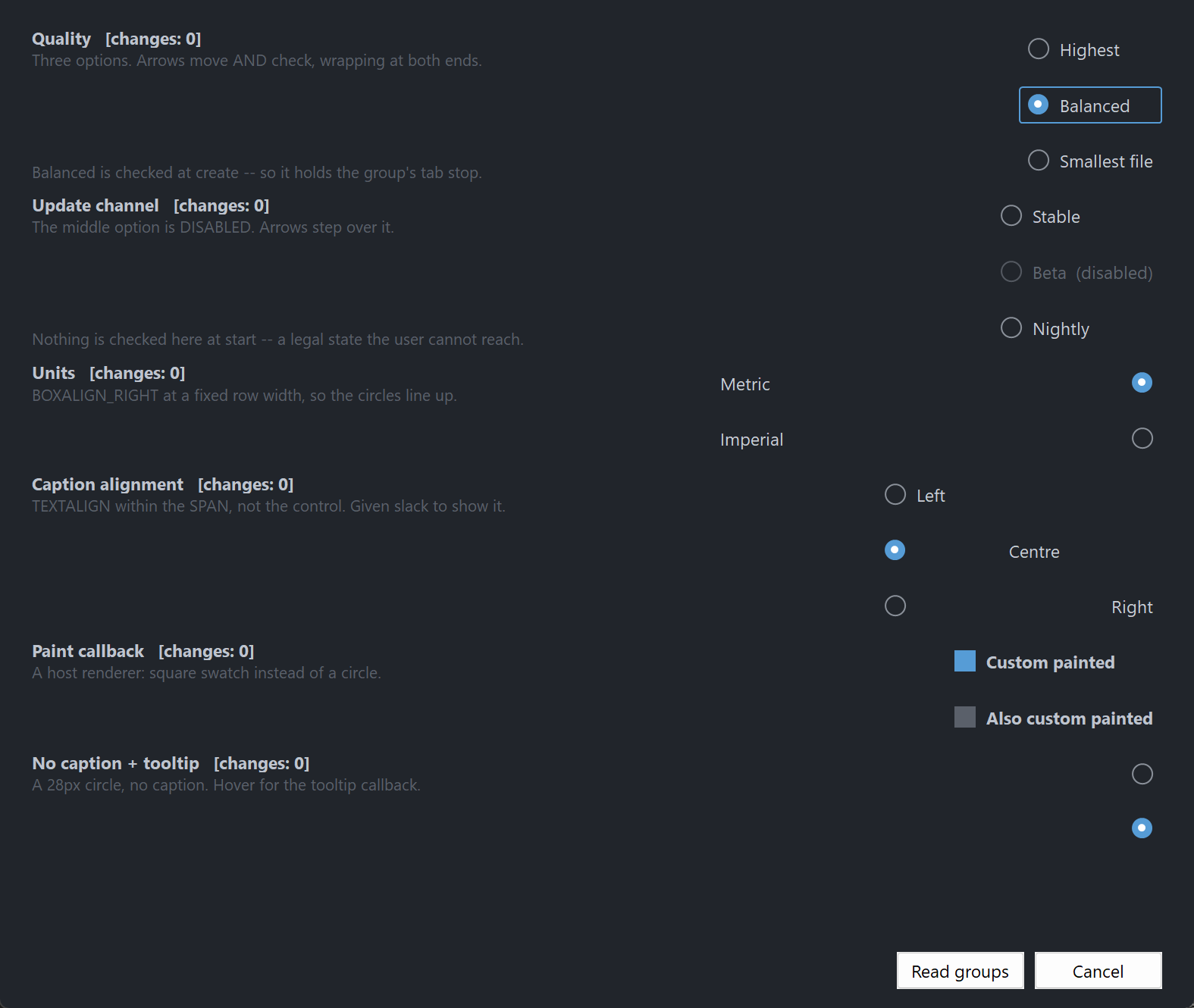

What it looks like

---

Requirements

Copy these files into your project:

There is no icon font to ship. The circle is drawn as geometry through GDI+, so nothing here depends on Segoe Fluent Icons being installed.

You also need AfxNova on the include path (-i "C:\dev" if your tree matches this one).

Include order

PsBufferPaint.inc must be included before PsOptionButton.inc, and both after AfxNova:

#include once "windows.bi"
#include once "AfxNova\CWindow.inc"
#include once "AfxNova\AfxStr.inc"
#include once "AfxNova\AfxGdiplus.inc"
using AfxNova

#include once "PsBufferPaint.inc"
#include once "PsOptionButton.inc"

Those two lines are the whole of it. PsOptionButton.inc includes PsTipHost.inc itself, and PsTipHost.inc includes PsTooltip.inc, so the tooltip backend adds no include line to the host — only the four files to the table above.

PsOptionButton.bi includes PsBufferPaint.bi itself, so the header is self-sufficient. It does not include windows.bi or AfxNova — the host must already have done so, and must already have said using AfxNova.

GDI+ must be running

Every repaint draws through GDI+. Initialise it before the first paint and shut it down after every window is destroyed:

CoInitialize( null )
dim as ULONG_PTR gdipToken = AfxGdipInit()

' ... create windows, run the message loop ...

AfxGdipShutdown( gdipToken )
CoUninitialize

Without the bracket the control draws nothing at all — no error, just an empty rectangle.

Do not name anything ok

GDI+ defines Ok = 0 as a Status enum value in namespace AfxNova. Every host says using AfxNova, so any host identifier called ok becomes a duplicate definition the moment you adopt this file. Use bOK.

Message pump

This control adds no pump obligation. There is no PsOptionButton_FilterMessage and none is needed. If you are coming from a control that has one, there is nothing to look for here.

It is focusable, though, so the two ordinary rules for a focusable control in a plain CWindow host both apply:

do while GetMessage( @uMsg, null, 0, 0 )
    if uMsg.message = WM_QUIT then exit do
    ' IsDialogMessage is what makes Tab work at all.
    if IsDialogMessage( pWindow->hWindow, @uMsg ) = 0 then
        TranslateMessage @uMsg
        DispatchMessage @uMsg
    end if
loop

and, before the loop starts:

SetFocus( hFirstControl )

Without IsDialogMessage, Tab does nothing and the arrow keys still work. Without the startup SetFocus, the first Tab does nothing: IsDialogMessage only acts when the focused window is a descendant of the window passed to it, and at startup focus is on the form itself — a window is not its own child.

---

Quick start

' Three options in one group. The group id is the third Create argument.
dim as HWND hHigh = PsOptionButton_Create( hParent, 1001, 1 )
dim as HWND hMed  = PsOptionButton_Create( hParent, 1002, 1 )
dim as HWND hLow  = PsOptionButton_Create( hParent, 1003, 1 )

dim as HWND opts(0 to 2) = { hHigh, hMed, hLow }
dim as DWSTRING caps(0 to 2) = { "Highest", "Balanced", "Smallest file" }

for i as long = 0 to 2
    PsOptionButton_SetFont( opts(i), hFont )
    PsOptionButton_SetText( opts(i), caps(i) )
    PsOptionButton_SetCheckChangedCallback( opts(i), @OnQualityChanged )

    ' The control is created 0x0 and hidden. Ask it how big it wants to be.
    dim as long iw, ih
    PsOptionButton_GetIdealSize( opts(i), iw, ih )
    SetWindowPos( opts(i), 0, 20, 20 + (i * 30), iw, ih, SWP_NOZORDER or SWP_NOACTIVATE )
    ShowWindow( opts(i), SW_SHOW )
next

' Silent: no callback fires. This also moves the group's tab stop here.
PsOptionButton_SetChecked( hMed, true )

The callback it references:

sub OnQualityChanged( byval hOpt as HWND, byval isChecked as boolean )
    ' BOTH edges arrive here. The option being vacated fires first with isChecked = false,
    ' then the one being taken fires with true.
    if isChecked then
        print "quality is now id " & str( PsOptionButton_GetID( hOpt ) )
    end if
end sub

Reading the answer back later, without holding any of the handles:

dim as long nQuality = PsOptionButton_FindCheckedID( hParent, 1 )   ' -1 = unanswered

---

Concepts

The handle is a real window

PsOptionButton_Create returns an ordinary HWND. Move it with SetWindowPos, show it with ShowWindow, disable it with EnableWindow — all of that works, and the control keeps its own state in step when you do. There is no opaque handle type.

A group is a parent plus a group id

A group is the pair (parent window, group id). Every option button with the same parent and the same group id is in the same group, and exactly one of them can be checked.

The group id is a Create parameter rather than only a setter, because a forgotten grouping call does not fail — it silently merges two groups into one, and the form looks right until somebody clicks. It defaults to 0, so a window with a single logical group needs no grouping calls at all.

hOpt1 = PsOptionButton_Create( hParent, 1001, 1 )   ' group 1
hOpt2 = PsOptionButton_Create( hParent, 1002, 1 )   ' group 1
hOpt3 = PsOptionButton_Create( hParent, 1003, 2 )   ' a different group, same parent

Two groups on one parent never interfere. PsOptionButton_SetGroupID moves a button between groups later.

Exactly one member of a group carries WS_TABSTOP

The checked member, or the first enabled member when nothing is checked. It moves automatically when the check moves, when a member is disabled, and when a member is destroyed.

That is what makes the group a single tab stop, which is how a Windows radio group behaves: Tab enters the group at the checked option and the next Tab leaves the group entirely. Within the group you navigate with the arrows.

You do not manage this bit, and you should not set WS_TABSTOP on these controls yourself.

Arrow order is creation order

The arrow keys walk the group in the order the buttons were created, not in z-order and not by screen position. If you create a group out of visual order, the arrows will follow the order you created them in.

Geometry is derived, never set

The control owns its rects. You set inputs — padding, the box cell size, the gap, the ring band — and the layout produces the rects from them. You can read them, but you cannot assign them.

ringPad    = nFocusGap + nFocusThick        reserved ALWAYS, focused or not
textBlock  = hasText ? nBoxGap + textW : 0
contentH   = max( hasText ? textH : 0 , nBoxHeight )

idealW     = 2*ringPad + padLeft + boxWidth + textBlock + padRight
idealH     = 2*ringPad + padTop  + contentH + padBottom

rcContent  = client deflated by ringPad
rcVisual   = rcContent inflated by ringPad

PsOptionButton_GetIdealSize is valid before the control has ever been sized, which is what lets you use it to decide how big to make the control in the first place.

The focus-ring band is reserved whether or not the control has focus, so nothing moves when focus arrives.

The box cell is pinned; the caption gets the leftover

The box cell sits against the padding on whichever side OPT_BOXALIGN_* puts it, and the caption takes the whole span that is left over. One model gives both looks, decided only by how wide you make the control:

sized to GetIdealSize     (o) Highest quality          packed
sized to a full row width  Highest quality        (o)  settings row

A column of OPT_BOXALIGN_RIGHT buttons all sized to the same width line their circles up for free.

rcText is the span, not the ink. It runs from the box cell to the far padding so DT_END_ELLIPSIS has somewhere to ellipsize into. Drawing a background behind "the text" using that rect fills the whole span.

The circle is inscribed in the cell, not equal to it

rcBox is the declared cell the layout charges for. rcCircle is the largest centred square inside it — which is what actually gets drawn. They are identical for the default 16×16 cell and differ the moment you set a non-square one, at which point stroking rcBox would produce a stadium rather than a circle.

If you write a paint callback and want a round button, use rcCircle.

The dot scales with the circle by default

nDotSize is 0 by default, which means derive the dot as a percentage of the circle diameter. Set the box cell to 32px and the dot grows with it. A declared non-zero nDotSize overrides that and stays fixed — useful, but it decouples: scale the cell up afterwards and the dot will look wrong with nothing to warn you.

Setters are silent; user interaction notifies

PsOptionButton_SetChecked, SetGroupID and ClearGroup change state without firing any callback. Only a completed click, Space, an arrow-key move, or the explicit PsOptionButton_Click notifies.

That split is what makes it safe to call a setter from inside your own change callback — the recursive call cannot notify.

Both edges notify, and the loser fires first

When the user checks B while A was checked, two callbacks fire, in this order:

OnChanged( hA, false )      ' first
OnChanged( hB, true  )      ' second

Both state writes land before either callback runs, so reading PsOptionButton_FindChecked() from inside either one gives a coherent answer — the group is never observably double-checked or momentarily empty.

If you only care about the winner, test isChecked and ignore the other call.

Mouse capture and the cancelled gesture

Pressing an option button takes mouse capture. Press it, slide the cursor off, release — and nothing gets checked. The control paints the press state only while the cursor is inside, so the gesture visibly cancels before the release confirms it.

---

Behaviour and limits

• A group with nothing checked is legal, and it is the state a group starts in. PsOptionButton_FindCheckedID returns -1 for it. The user can never reach it — clicking the checked member is a silent no-op and no gesture unchecks. Only the host can empty a group, via SetChecked(h, false) or ClearGroup.
• Enter is not claimed. A focused option button lets Enter through to the dialog's default button, which is what a Win32 radio button does. Space is the activation key.
• Groups cannot span parents. A group is (parent, id); two buttons with different parents are never in the same group even with the same id.
• Arrow keys clamp to the group and wrap at both ends. They never move focus out of it.
• Disabled members are stepped over by the arrows and refuse clicks, but PsOptionButton_SetChecked still works on them — a host restoring saved settings onto a conditionally-greyed form has to be able to say which option is selected.
• Destroying the checked member leaves the group with nothing checked. The check is not reassigned to a survivor. The tab stop is handed on, so the group stays reachable by Tab.
• SetGroupID makes an arriving checked button lose if the destination group already has a checked member. Re-grouping is a layout operation, not a user answering a question.
• The box cell is declared, never measured. Set it larger and the control gets wider; the control never sizes the cell to fit anything.
• A caption-less option button is shorter than a captioned one, because the content height ignores the font when there is no text. A host laying out a mixed column takes the max itself.
• No mnemonics. The renderer forces DT_NOPREFIX, so &Highest draws a literal ampersand. PsOptionButton_Click is the door for a host accelerator.
• No tri-state, no multiline captions, no HICON, no WM_COMMAND sent to the parent, no hit-testing API. The whole client is the hit area, caption included.
• CS_DBLCLKS is not set. A rapid second click arrives as an ordinary WM_LBUTTONDOWN.
• Not thread-safe. Create and drive these from the UI thread only.

---

API reference

Creation

Group

Content

WM_SETTEXT, WM_GETTEXT and WM_GETTEXTLENGTH all alias the caption, so SetWindowTextW and GetWindowTextW work on these controls and agree with Get/SetText.

State

Action

Geometry and layout

All six rect getters force any pending layout first, so they never hand back a stale value. They return FALSE when the control has no geometry yet or the rect is legitimately empty.

Appearance

Colour resolution

Both are pure functions — they take no control handle and touch no global, so you can call them from a paint callback to get exactly the colours the built-in painter would use.

Tooltips

There is no caption fallback: a control with neither its own tooltip text nor a callback answer shows nothing, rather than popping a tip that repeats the caption already on screen.

Tooltips: two backends

The control ships on the system (comctl32) tooltip it has always used. PSTIP_MODE_PS switches this instance to PsTooltip: owner-drawn, themeable, word-wrapping without a hand-sent TTM_SETMAXTIPWIDTH, and — the one that matters structurally — not a subclass of the control it serves, so it still works when the window under the cursor is a descendant rather than the control itself. Either way the control adds no pump obligation: PsTooltip has no FilterMessage, so switching changes nothing about your message loop.

The default is deliberate, not caution. PsTooltip's colour defaults are dark, so a control that switched itself would put a dark tip on a light form. Theme every tip in the process with PsTooltip_SetDefaultColors and friends, then opt in per instance.

The mode changes how a tip is drawn, never what it says. Both backends resolve text through the same rule — this control's own text first, then OPT_TooltipCallbackFunc, then nothing.

All three delays are stored as well as pushed, so one set before a mode switch is still in force after it, in either direction. A delay you never set keeps the backend's own derivation from the system double-click time, which is what makes a tip appear on the same beat as every other tip on the machine.

PsTooltip_SetDefaultColors( @myTipColors )     ' once, at startup, for every tip in the process
PsTooltip_SetDefaultFonts( ghFontUI )

PsOptionButton_SetTooltipMode( hOpt, PSTIP_MODE_PS )
PsOptionButton_SetHoverTime( hOpt, 400 )
dim as HWND hTip = PsOptionButton_GetPsTooltipHandle( hOpt )
if hTip then PsTooltip_SetTitle( hTip, "Render quality" )   ' not reachable on the system backend

Callback registration

Render probes

Public so that a host supplying its own paint callback can assert it has not destroyed the control. Both render the control offscreen with its current painter.

nPart is one of the OPT_PART_* constants. Both force isFocused true internally so the focus ring is included, and restore it afterwards.

---

Colors

PSOPTIONBUTTON_COLORS, copied on SetColors. Twenty-one fields.

Precedence: disabled > pressed > hot > idle. isChecked is not a mood — it selects between the RingColor* and RingColorChecked* sets inside whichever mood resolved, so it works in all four without doubling the table.

The control reads completely flat by default, because BackColorHot, BackColorPressed and BackColorDisabled all default equal to BackColor. Hovering therefore changes only the circle and the caption. If you want a menu-style highlight across the whole row, set one field:

dim as PSOPTIONBUTTON_COLORS c
PsOptionButton_GetColors( hOpt, @c )
c.BackColorHot     = BGR( 44, 49, 58 )
c.BackColorPressed = BGR( 44, 49, 58 )
PsOptionButton_SetColors( hOpt, @c )

DotColor defaults to white rather than to ForeColor, because it sits on the accent fill rather than on the control background. DotColorDisabled defaults to the background colour, so a disabled checked button reads as a hollow ring.

---

Callbacks

OPT_CheckChangedCallbackSub

type OPT_CheckChangedCallbackSub as sub( byval hOptionButton as HWND, byval isChecked as boolean )

Fires when the checked state changes through user interaction — a completed click, Space, an arrow-key move within the group, or the explicit PsOptionButton_Click.

Both edges fire, and the loser fires first. Checking B while A was checked produces OnChanged(hA, false) then OnChanged(hB, true). Both state writes land before either call, so PsOptionButton_FindChecked() is coherent from inside either one.

Fired after the state is updated, so PsOptionButton_GetChecked() agrees with isChecked.

SetChecked, SetGroupID and ClearGroup do not fire it — which is what makes it safe to call them from inside this handler.

OPT_PaintCallbackSub

type OPT_PaintCallbackSub as sub( byval p as PSOPTIONBUTTON_PAINTINFO ptr )

Draws the whole control instead of the built-in painter. Paint through p->b, the control's double buffer for this repaint — do not touch the screen DC.

The control has already filled the client with the resolved mood's BackColor before calling you, so a callback that only adds a foreground does not have to repaint the background.

Two contracts worth honouring:

• Draw the caption with the same font you handed to PsOptionButton_SetFont. The ideal width was measured with it; a different font means the width lies.
• Do not use PaintBorderRect to draw an outline. It fills unconditionally before it strokes, so used as a frame or a focus ring it erases everything beneath it. PaintRoundOutline strokes without filling. PaintEllipse always fills regardless of its pen argument. PsOptionButton_CountRenderedTones exists so you can assert you have not done this.

More generally: a callback that fills a rectangle covering the whole control erases everything the control already drew. Draw your additions, not a background.

OPT_MessageCallbackFunc

type OPT_MessageCallbackFunc as function( byval m as PSOPTIONBUTTON_MESSAGEINFO ptr ) as boolean

Observes messages. Return TRUE to suppress the control's default handling, FALSE to let it proceed. Focus and keyboard messages are handed over as well as mouse ones. Arrow keys reach you before they move the group selection, so you can veto navigation.

The result is ignored for three messages:

A host that does not want the control focusable must not make it a tab stop.

OPT_TooltipCallbackFunc

type OPT_TooltipCallbackFunc as function( byval hOptionButton as HWND ) as DWSTRING

Supplies tooltip text on demand, only when a tip is about to show, and only when the control has no tooltip text of its own. Return "" for no tooltip.

PSOPTIONBUTTON_PAINTINFO

PSOPTIONBUTTON_MESSAGEINFO

---

Constants

Box side

Caption alignment within the span

Moods

Probe parts

Default geometry

DPI-scaled once at Create, except where noted. Every setter afterwards takes raw pixels.

The two pen widths are the exception worth remembering: PaintRoundOutline DPI-scales the pen it is handed, so scaling them at creation as well would double them at any scale above 100%. They are DPI-aware — the painter is simply the thing that does it.

Hover tracking

Licence

Mozilla Public License 2.0.

MPL-2.0 is file-level copyleft, chosen deliberately for a drop-in control:

• You may use this in closed-source software, commercial or otherwise. §3.2 permits static linking with no additional conditions.
• If you modify these files, publish those files' changes. The obligation is per-file — your own sources are unaffected however tightly they are combined with these.
• The Exhibit B "Incompatible With Secondary Licenses" notice is not applied, which keeps this GPL-compatible.
