PsSelectBar

An owner-drawn select bar for FreeBASIC Win32 applications: a flat row of text labels where exactly one is current, marked by a coloured line drawn under the word.

It is the control you reach for above a results pane or a detail view — the widget that reads as a set of view choices rather than as tabs. There is no tab chrome, no close button, no reordering and no scrolling. It draws itself entirely; nothing about its appearance depends on the visual style the user happens to be running, and every colour it paints is one you can set. Any number of instances can coexist, each owning all of its own state.

The panel set is static by contract. Panels are added once, when you build the bar, and are never inserted, deleted or moved afterwards — there is no InsertPanel and no DeletePanel. PsSelectBar_Clear exists as a full-rebuild escape hatch (re-localising the labels, say), not as a runtime editing tool. If you need a bar whose panels come and go while the user watches, this is the wrong control.

Clicking a panel never moves the keyboard focus. The bar is mouse-only: it is not a tabstop, it takes no focus and handles no keys, so a host's editor keeps the caret while the user switches views.

---

What it looks like

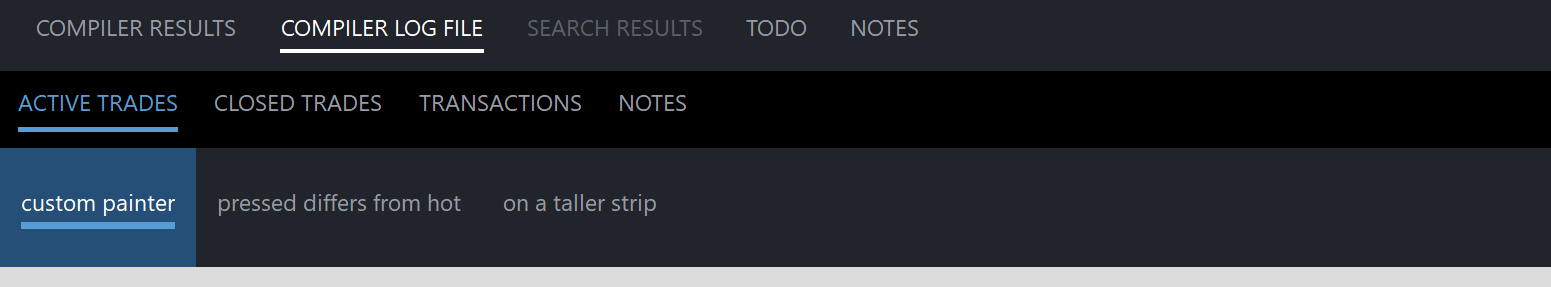

Three bars: the Output-panel style with one current entry underlined, a blue-accent variant, and a taller strip drawn by a host paint callback. Exactly one entry is always current — the control refuses to have none. The indicator spans the text, not the padded cell, and text plus gap plus rule are centred as a block. Cropped below the bars.

---

Requirements

Files to copy into your project:

AfxNova is required. The control is built on CWindow and uses DWSTRING, and CBufferPaint draws through AfxNova\CGdiPlus.inc. Sources include AfxNova relative to the workspace root (#include once "AfxNova\CWindow.inc"), so builds need the workspace root on the include path:

fbc64.exe -i "C:\dev" main.bas

Include order. PsSelectBar.inc pulls in its own .bi, which pulls in PsBufferPaint.bi. The two implementation files are included in this order, after the AfxNova headers and after using AfxNova:

#include once "windows.bi"
#include once "AfxNova\CWindow.inc"
#include once "AfxNova\AfxStr.inc"
#include once "AfxNova\AfxGdiplus.inc"

using AfxNova

#include once "PsBufferPaint.inc"
#include once "PsSelectBar.inc"

GDI+ must be running before the first repaint and must outlive the last one. Every repaint builds and tears down a PsBufferPaint, so bracket your message loop:

dim as ULONG_PTR gdipToken = AfxGdipInit()
' ... create windows, run the message loop ...
AfxGdipShutdown( gdipToken )

AfxGdipShutdown must come after every window is destroyed. If you also use COM, shut GDI+ down before CoUninitialize — GDI+ leans on COM.

Never name an identifier ok. GDI+ defines Ok = 0 as a Status enum value in namespace AfxNova, and hosts customarily say using AfxNova. An existing variable, parameter or function called ok becomes a duplicate definition the moment you adopt these files. Use bOK instead.

There is no pump obligation. The control installs no message filter and needs nothing from your message loop. It is not a tabstop and never takes focus, so IsDialogMessage has nothing to do with it either way.

You supply the font and you own it. The control never creates a font; it stores the HFONT you hand PsSelectBar_SetFont and uses it both to measure and to draw. Keep it alive for as long as the control lives, and destroy it yourself afterwards. See Always set a font under Concepts — the measuring pass and the painter disagree if you do not.

---

Quick start

' Create it. The control is created zero-sized and hidden.
dim as HWND hBar = PsSelectBar_Create( hWndParent, IDC_MYFORM_SELECTBAR )

' The font is both the measuring font and the drawing font. Set it first, so the first
' layout pass measures with the right one.
PsSelectBar_SetFont( hBar, ghFont(GUIFONT_10) )

' Be told when the user switches panels.
PsSelectBar_SetSelChangeCallback( hBar, @MyBar_SelChange )

' Build the bar. The FIRST panel added silently becomes the current one.
dim as long idx
idx = PsSelectBar_AddPanel( hBar, "COMPILER RESULTS", IDP_COMPILER_RESULTS )
PsSelectBar_SetTooltipText( hBar, idx, "Errors and warnings from the last build" )
' Panel 0's own left padding is the bar's lead-in indent; there is no separate property.
PsSelectBar_SetPanelPadding( hBar, idx, pWindow->ScaleX(20), -1 )

PsSelectBar_AddPanel( hBar, "COMPILER LOG FILE", IDP_COMPILER_LOG )

idx = PsSelectBar_AddPanel( hBar, "SEARCH RESULTS", IDP_SEARCH_RESULTS )
PsSelectBar_SetEnabled( hBar, idx, false )      ' nothing searched yet

PsSelectBar_AddPanel( hBar, "TODO", IDP_TODO )
PsSelectBar_AddPanel( hBar, "NOTES", IDP_NOTES )

' Restore the panel the user was last on. This is silent -- the callback does not fire.
PsSelectBar_SetCurSel( hBar, gConfig.OutputPanelIndex )

' Place it. The bar has no opinion about its own size: give it the strip you want.
' PsSelectBar_GetIdealWidth tells you how wide the run of panels is, and is valid here,
' before the control has ever been sized.
SetWindowPos( hBar, 0, x, y, cx, pWindow->ScaleY(44), SWP_NOZORDER )
ShowWindow( hBar, SW_SHOW )

And the callback:

sub MyBar_SelChange( byval hBar as HWND, byval idxOld as long, byval idxNew as long )
    ' Fired only for user action. The control's state is already updated, so
    ' PsSelectBar_GetCurSel( hBar ) = idxNew.
    ShowOutputPage( PsSelectBar_GetPanelID( hBar, idxNew ) )
end sub

That is the whole minimum. Everything below is refinement.

---

Concepts

The handle is a real HWND

PsSelectBar_Create returns an ordinary window handle, and every PsSelectBar_* function takes it. It is not an opaque type, so you can treat the control as the window it is — SetWindowPos to place and size it, ShowWindow to show it, GetDlgItem to find it by the CtrlID you passed at creation.

It is created zero-sized and hidden

PsSelectBar_Create gives the control the styles WS_CHILD, WS_CLIPSIBLINGS and WS_CLIPCHILDREN, and adds CS_DBLCLKS to its window class. WS_VISIBLE is deliberately absent, so a newly created control shows nothing until you size it and call ShowWindow. That lets you build and configure a bar before it is ever seen.

There is no WS_TABSTOP, no focus handling and no keyboard handling. The control has no child windows — the control window is the bar, and every panel is drawn in its WM_PAINT.

Model indices

Panels are addressed by index, 0-based, in the order you added them. Because the set is static, an index is stable for the life of the bar. Each panel also carries a host id and a free-form itemData; PsSelectBar_FindPanelByID maps an id back to an index, which is the lookup to prefer in a select case so that adding a panel at design time does not renumber anything.

Exactly one panel is always current

The bar has no "nothing selected" state. Three rules hold that invariant:

1. The first panel added becomes current, silently, at the only moment the invariant could otherwise be violated.
2. PsSelectBar_SetCurSel rejects -1 and rejects a disabled panel, returning FALSE and changing nothing.
3. PsSelectBar_SetEnabled( idx, false ) refuses the current panel, returning FALSE and changing nothing. Switch away first, then disable.

Between them, the current panel always exists and is always enabled, so the indicator is always somewhere on screen.

The one gap is deliberate: PsSelectBar_Clear resets the selection to -1, and the next PsSelectBar_AddPanel re-establishes it. PsSelectBar_GetCurSel returns -1 only while the bar is empty.

A panel is as wide as its own label

There is no equal-width mode and no auto-sizing to fill the bar. A panel's cell width is:

  cellWidth(i) = padLeft(i) + measured text width + padRight(i)

padLeft and padRight come from the bar-wide default (PsSelectBar_SetPadding) unless that panel overrides them (PsSelectBar_SetPanelPadding), where -1 on either side means inherit the bar's value.

PsSelectBar_GetIdealWidth is the sum of every cell width — what the bar would have to be for the run to fill it exactly. It does not depend on the client area at all, so it is valid before the control has ever been sized.

The run always starts at x = 0. There is no separate indent property: the visual indent before the first label is simply panel 0's left padding.

The block-centred layout

This is the part that surprises people. The indicator spans the text, not the padded cell, and the thing centred vertically in the client area is text + gap + line as one unit — not the text alone with the line hanging underneath it.

  textH     = GetTextMetrics.tmHeight          ONE height for the whole bar
  blockH    = textH + indicatorGap + indicatorThickness
  blockTop  = clientTop + (clientH - blockH) \ 2

  rc(i)          = ( x, clientTop, x + cellWidth(i), clientBottom )    full client height
  rcText(i)      = ( x + padLeft(i), blockTop,
                     x + padLeft(i) + textW(i), blockTop + textH )
  rcIndicator(i) = ( rcText.left,  rcText.bottom + indicatorGap,
                     rcText.right, rcText.bottom + indicatorGap + indicatorThickness )

So the indicator thickness and the indicator gap are layout inputs, not cosmetics: changing either moves the text as well as the line. That is what keeps the space above the text and the space below the line balanced whatever the font, the gap or the thickness do.

textH comes from GetTextMetrics, once, for the whole bar — not from each label's own extent. One height means every label sits on the same baseline and every indicator on the same pixel row; per-panel extents would let an all-uppercase or an empty caption ride up or down relative to its neighbours and the indicators would visibly stagger.

Note that rc spans the full client height, so a panel's fill and hit area cover the whole strip even though its text sits in the centred block.

Geometry is derived, never assigned

The control computes three rectangles per panel and owns all three. You influence them through the padding, indicator and font setters; you never write them.

Layout is lazy. A mutator marks the layout stale and asks for a repaint; the next paint — or any rect query — recomputes it. There is no begin-update / end-update pair to remember, and a burst of PsSelectBar_AddPanel calls costs one measuring pass, not one per panel.

Every rect query forces a pending layout first, so results are always current. They return TRUE for any valid index, but the rects stay empty until the control has a client area: with a zero-sized control there is nowhere to place anything, so the layout computes the widths (and therefore GetIdealWidth) and leaves the rects alone.

Always set a font

PsSelectBar_SetFont is not optional in practice. With no font set, the measuring pass falls back to the stock DEFAULT_GUI_FONT while the built-in painter draws with whatever font the drawing buffer's DC happens to hold — so the measured cell widths and the text actually drawn can disagree. Set the font once, before or after adding panels; setting it re-lays-out the whole bar, because it is what the widths and the block height are derived from.

The HFONT is borrowed, never owned. Keep it alive, and destroy it yourself.

Pixels, and who scales them

Only the creation-time defaults are DPI-scaled for you:

Every setter afterwards takes raw pixels and expects you to scale — typically pWindow->ScaleX(...) / ScaleY(...).

Programmatic changes are silent

PsSelectBar_SetCurSel never fires the selection-change callback. That callback reports user action and nothing else, following Win32's own TCM_SETCURSEL / TCN_SELCHANGE split. It means you can safely call PsSelectBar_SetCurSel from inside your own change handler without recursing.

Clicking the panel that is already current is not a change either, and fires nothing.

How a click is decided

Pressing the left button over an enabled panel takes mouse capture and arms that panel. The selection moves on release, and only if the release lands on the same panel the press started on. So the standard escape gesture works: press, slide off, release — the selection does not move.

While a press is live and the cursor has slid outside, the panel stops painting as pressed but the gesture is not over. Slide back on and it re-arms. Anything that steals capture (a modal dialog, the shell) cancels the gesture.

Pressing does not call SetFocus. A select bar must not pull the caret out of the host's editor.

Hot tracking

The bar tracks which panel the cursor is over and repaints only the panels whose state changed. Disabled panels are never hot. Because WM_MOUSELEAVE is not reliably delivered when the cursor exits fast, a 100 ms timer polls the cursor position while the mouse is over the control and clears the hot panel if it has really gone; the timer runs only while it is needed and is killed with the window.

Tooltips

One tooltip tool covers the whole control — the panels are painted rects, not windows — and its text is resolved on demand for whichever panel is currently hot:

1. the panel's own text, set with PsSelectBar_SetTooltipText, if it has any;
2. otherwise SEL_TooltipCallbackFunc, if you installed one;
3. otherwise no tip.

There is deliberately no fallback to the panel's caption: the caption is already on screen, so a tip repeating it is noise. The tooltip window is created with the control and destroyed with it; PsSelectBar_GetTooltipHandle hands it to you if you want to restyle it.

Lifetime

The control frees itself, and its tooltip window, when its window is destroyed. It owns no host resources: the font stays yours. Destroy the parent and you are done.

---

Behaviour and limits

Firm properties of the control, not settings:

• Static by contract. Panels are added and never inserted, deleted or moved. There is no InsertPanel and no DeletePanel. PsSelectBar_Clear tears the whole bar down for a rebuild; it is not a runtime editing tool. PsSelectBar_SetText and the padding setters do re-measure and therefore shift every panel to their right — design-time operations, and keeping them out of the runtime path is your job.
• Exactly one panel is always current. The first panel added auto-selects; SetCurSel rejects -1 and rejects disabled panels; SetEnabled(false) refuses the current panel. The only moment GetCurSel returns -1 is between Clear and the next AddPanel.
• CS_DBLCLKS is on, and a double-click delivers a trailing up. The full sequence a host sees is WM_LBUTTONDOWN, WM_LBUTTONUP, WM_LBUTTONDBLCLK, WM_LBUTTONUP. The double-click message substitutes for the second rapid down rather than arriving on top of it, which is why the control handles the two identically — a control that ignored the dblclk would drop that press, so a quick A → B → A would silently lose a selection change, and the trailing up would release a capture that was never taken.

The trap: if you act on the double-click through the message callback, and your single-click action has a side effect the double-click reverses, you must consume that trailing up yourself — a one-shot boolean, not a click timer. Otherwise the up that follows the dblclk re-runs the single-click action and undoes what you just did.

• Double-clicks are reported, never acted on. The control's own response to WM_LBUTTONDBLCLK is exactly its response to a press. Whatever a double-click means in your UI, you implement it in the message callback.
• The right mouse button is reported, never acted on. A context menu is your business. No capture is taken for the right button, so a right-up can arrive without a matching down.
• No keyboard, no focus, no tabstop. Arrow-key navigation between panels does not exist, and clicking never moves focus.
• No scrolling and no overflow handling. When the run of panels is wider than the control, the tail simply clips at the client edge. Rects are computed honestly rather than squeezed, so hit-testing stays correct: a cell that runs past the edge is unreachable because the interaction path also requires the cursor to be inside the client area.
• No equal-width or fill mode. Cells are as wide as their own text plus padding.
• No icons, no close buttons, no reordering, no multi-select.
• PsSelectBar_HitTest includes disabled panels and does not require the point to be inside the client area. It answers "what geometry is here". The hover and click paths add both extra tests themselves, which is why the message callback's idx can be -1 where HitTest returns a panel.
• A message callback cannot suppress WM_LBUTTONUP. The result is honoured for every reported message except that one, where it is ignored — the up-message is what releases mouse capture, and a callback that suppressed it would strand the capture and route every later click to this control.

A paint callback that fills a rectangle covering the whole control will erase everything under it, including the panels already drawn in the same pass. Fill p->rc, the cell you were handed — never the client area.

---

API reference

Creation

Panels

Selection and state

Geometry and layout

All setters take raw pixels; you do the DPI scaling. Each marks the layout stale and requests a repaint.

The three rect queries force any pending layout first, and set rc empty before doing anything else, so a FALSE return always leaves an empty rect. They return FALSE for a bad handle or a bad index. A TRUE return with an empty rect means the control has no client area yet, which is the case between PsSelectBar_Create and the first SetWindowPos.

Appearance

To change one colour, read-modify-write:

dim as PSSELECTBAR_COLORS clrs
PsSelectBar_GetColors( hBar, @clrs )
clrs.ForeColorSelect = BGR( 86,156,214)
clrs.IndicatorColor  = BGR( 86,156,214)
PsSelectBar_SetColors( hBar, @clrs )

Callback registration

All four are optional and independent. None of them repaints on its own; install them while building the bar.

---

Colors

The colour surface is one flat struct, PSSELECTBAR_COLORS, with eight COLORREF fields. Every field ships with a usable dark-theme default, so a bar you never call PsSelectBar_SetColors on still looks right.

Why two of them default to BackColor

BackColorHot and BackColorSelect are deliberately equal to BackColor out of the box. That gives the flat look the control was drawn for: a uniform background across the whole bar, where the only things that move are the label colour and the indicator. If you want a filled hover cell or a filled selected cell, set those two fields to something different — nothing else has to change.

There is no disabled background: a disabled panel keeps BackColor and changes only its label colour.

Which colour wins

The built-in painter picks one fill and one label colour per panel per repaint, in this precedence:

disabled   >   pressed   >   hot   >   selected   >   idle

The first rung is unreachable from the others rather than merely winning over them: a disabled panel is never hot and never pressable.

Pressed renders exactly as hot. A press here is a half-completed selection, not a button being pushed, and flashing a distinct pressed style for the fraction of a second before the indicator moves reads as noise. isPressed is still handed to a paint callback, which is free to disagree.

What the painter draws

Panels outside the repaint's update rectangle are skipped, so hovering repaints two cells rather than the whole bar.

---

Callbacks

Selection changed

type SEL_SelChangeCallbackSub as sub( byval hSelectBar as HWND, _
                                      byval idxOld as long, byval idxNew as long )

The user changed the current panel — a press and release on the same enabled panel. Fires after the control's state is updated, so PsSelectBar_GetCurSel( hSelectBar ) already equals idxNew.

It does not fire for PsSelectBar_SetCurSel, which is what makes it safe to call that setter from inside this handler. Clicking the panel that is already current is not a change and fires nothing.

Paint panel

type SEL_PaintPanelCallbackSub as sub( byval p as PSSELECTBAR_PAINTINFO ptr )

Draws one panel instead of the built-in painter. Installing it replaces the built-in rendering for every panel — there is no per-panel opt-in. Paint through p->b, the control's double buffer for this repaint; do not touch the screen DC.

PSSELECTBAR_PAINTINFO carries everything you need:

Three contracts worth honouring:

• Draw with the same font you handed PsSelectBar_SetFont. The control measured the cell widths with it; a different font means the widths lie.
• Fill p->rc, not p->rcText. rc is the whole cell including padding. The control filled the client with BackColor before calling you, so anything you leave unpainted shows the bar background through.
• Use the rects as handed to you rather than re-deriving insets from p->rc. rcText is exactly the measured text and rcIndicator is already positioned under it; both move when the padding, the indicator or the font changes.

isPressed goes FALSE when the cursor slides off during a press, without the gesture ending. That is deliberate: the press should stop looking armed the moment the cursor leaves.

A callback that fills a rectangle covering the whole control will erase everything under it — including the panels already drawn in the same pass. Fill the cell you were handed.

Message

type SEL_MessageCallbackFunc as function( byval m as PSSELECTBAR_MESSAGEINFO ptr ) as boolean

Observes messages as they arrive. Return TRUE to suppress the control's own handling of that message, FALSE to let it proceed.

PSSELECTBAR_MESSAGEINFO:

The messages reported are WM_MOUSEMOVE, WM_MOUSEHOVER, WM_MOUSELEAVE, WM_LBUTTONDOWN, WM_LBUTTONDBLCLK, WM_LBUTTONUP, WM_RBUTTONDOWN and WM_RBUTTONUP. This is where a host implements right-click menus and double-click behaviour.

Your return value is ignored for WM_LBUTTONUP. The control holds mouse capture across a press, and the up-message is what releases it: a callback that suppressed it would strand the capture and route every later click to this control. Suppressing WM_LBUTTONDOWN suppresses the press itself, which is allowed — no capture has been taken at that point.

For every other reported message, TRUE suppresses the default handling.

Tooltip

type SEL_TooltipCallbackFunc as function( byval hSelectBar as HWND, byval idx as long ) as DWSTRING

Supplies a panel's tooltip text on demand, and only when a tip is about to show. Consulted only for panels with no tooltip text of their own. Return "" for no tooltip.

There is deliberately no fallback to the panel's caption: the caption is already on screen, so a tip repeating it is noise.

---

Constants

There are no enums. The tunable defaults are #defines:

Two more belong to the hot-tracking safety net and are not host settings:

The tooltip hover delay is not a constant — it is a per-instance value, default 250 ms, changed with PsSelectBar_SetHoverTime.
