An owner-drawn command toolbar for FreeBASIC / Win32. A horizontal strip of buttons, each with an optional icon and an optional caption, plus separators, split buttons, dropdown buttons, and cells that hold a child window of your own. When the strip runs out of room the items that no longer fit move into an overflow menu behind a chevron.

Items belong to one end of the bar or the other: left-gravity items pack forward from the left, right-gravity items pack against the right edge, so the "settings and help on the right" layout is expressed directly rather than by arithmetic. Toggle items can latch independently or form a mutually exclusive radio group.

The control owns its own painting, its geometry, its dropdown menus and its tooltips. It does not own your commands or your child windows: a TBR_KIND_CONTROL cell positions a window you created and destroys nothing, and the contents of a split or dropdown button's menu are yours to fill. It is mouse-driven only — it takes no focus and no tab stop, so it never steals the caret from an editor, and it has no keyboard interface of its own.

Repository: <https://github.com/PaulSquires/PsToolbar>

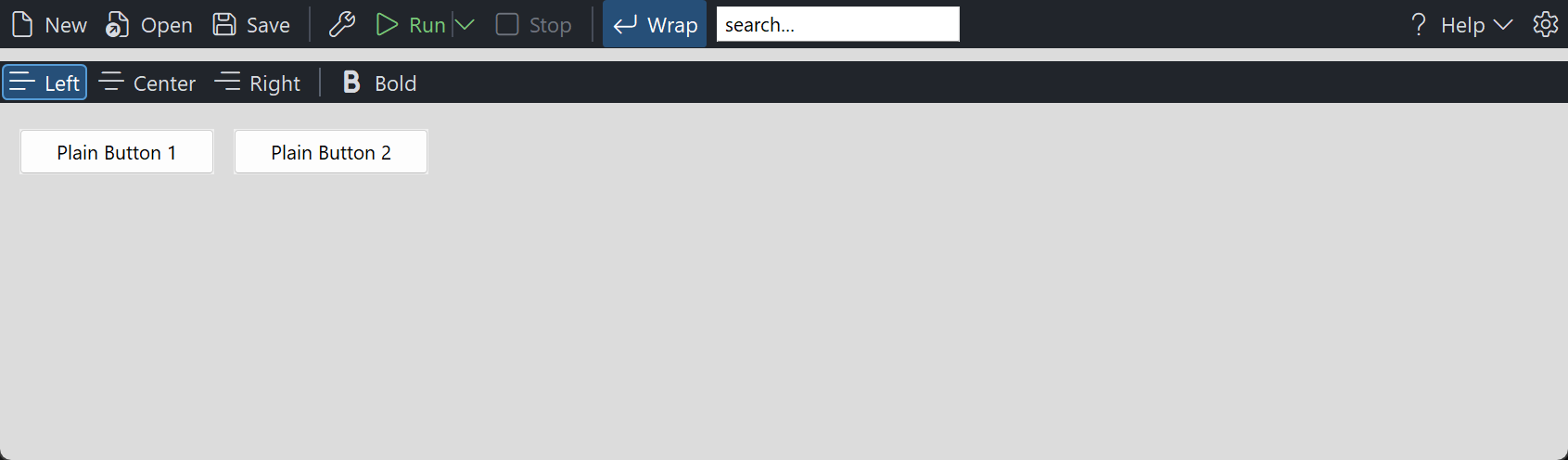

What it looks like

Requirements

Copy all twelve source files into your project. If you already vendor PsPopupMenu, PsBufferPaint, PsImage, PsTipHost or PsTooltip, you get one copy of each — #include once dedupes by resolved path.

Include order

PsToolbar.bi names types from both siblings, so their implementations must be compiled in first:

#include once "PsBufferPaint.inc"
#include once "PsPopupMenu.inc"
#include once "PsToolbar.inc"

PsToolbar.inc includes PsImage.inc and PsTipHost.inc (which in turn includes PsTooltip.inc) for you, so those three add no line to your host.

GDI+ must be running

All geometry is drawn through GDI+. Initialise it before the first repaint and shut it down after every window is destroyed:

dim as ULONG_PTR gdipToken = AfxGdipInit()
    ' ... create windows, run the message loop ...
AfxGdipShutdown( gdipToken )

Without this the control draws nothing at all.

Never name an identifier ok

GDI+ defines Ok = 0 as a Status enum value in namespace AfxNova, and hosts say using AfxNova. FreeBASIC is case-insensitive, so any variable of yours called ok becomes a duplicate definition the moment you adopt this control. Use bOK.

The message pump — required

PsToolbar_FilterMessage is mandatory. Call it for every toolbar, before your accelerator and dispatch handling:

do while GetMessage( @uMsg, null, 0, 0 )
    if PsToolbar_FilterMessage( hToolbar, @uMsg ) then continue do
    TranslateMessage @uMsg
    DispatchMessage  @uMsg
loop

Without it a dropdown has no keyboard navigation, never closes when you click outside it, and cannot be closed by clicking the very chevron that opened it. The call returns immediately when none of that toolbar's menus are open, so calling it for several toolbars costs almost nothing.

There is no IsDialogMessage obligation for the toolbar itself — it takes no tab stop. If you put a TBR_KIND_CONTROL child in it that should be reachable by Tab, your form needs IsDialogMessage as it would for any other child control.

Quick start

ghToolbar = PsToolbar_Create( hMain, IDC_TOOLBAR )

PsToolbar_SetTextFont(  ghToolbar, ghFont(GUIFONT_10) )
PsToolbar_SetGlyphFont( ghToolbar, ghFont(SYMBOLFONT_12) )
PsToolbar_SetClickCallback( ghToolbar, @OnToolbarClick )

PsToolbar_AddItem( ghToolbar, TBR_KIND_COMMAND, !"\uE7C3", "New",  IDM_NEW )
PsToolbar_AddItem( ghToolbar, TBR_KIND_COMMAND, !"\uE8E5", "Open", IDM_OPEN )
PsToolbar_AddSeparator( ghToolbar )

' A split button: the left half runs, the chevron drops a menu.
dim as long idxRun = PsToolbar_AddItem( ghToolbar, TBR_KIND_SPLIT, !"\uE768", "Run", IDM_RUN )

' Pinned to the right-hand end.
dim as long idxCfg = PsToolbar_AddItem( ghToolbar, TBR_KIND_COMMAND, !"\uE713", "", IDM_SETTINGS )
PsToolbar_SetItemGravity(  ghToolbar, idxCfg, TBR_GRAVITY_RIGHT )
PsToolbar_SetTooltipText(  ghToolbar, idxCfg, "Settings" )

ShowWindow( ghToolbar, SW_SHOW )

Size and place it like any window — PsToolbar_GetIdealSize gives you the height it wants and the width it would need in order not to overflow:

dim as long nWant, nHeight
PsToolbar_GetIdealSize( ghToolbar, nWant, nHeight )
SetWindowPos( ghToolbar, 0, rc.left, rc.top, rc.right - rc.left, nHeight, SWP_NOZORDER )

Write icon glyphs as !"\uXXXX" escape sequences, never as literal characters pasted into the source. FreeBASIC reads a source file that has no UTF-8 BOM as raw bytes, so a pasted Segoe Fluent Icons character arrives as three unrelated Latin-1 characters and draws garbage. The escape form is converted by the compiler and works whatever the file encoding.

The click callback:

sub OnToolbarClick( byval hToolbar as HWND, byval idx as long, byval id as long )
    select case id
    case IDM_NEW  : DoFileNew()
    case IDM_OPEN : DoFileOpen()
    end select
end sub

Concepts

The control handle is a real HWND

PsToolbar_Create returns an ordinary HWND. Move and size it with SetWindowPos, show it with ShowWindow. It is created zero-sized, so nothing appears until you place it.

Item kinds

Geometry is derived, never set

You supply paddings, an icon size, a text gap and per-item overrides; the control computes every rectangle. Layout is lazy — a burst of AddItem calls costs one layout pass, and any geometry query forces a pending one, so results are always current.

cellWidth = padBefore + content + padAfter

content   = iconWidth                                      icon only
          = textWidth                                      caption only
          = iconWidth + textGap + textWidth                 both
          = separatorWidth                                  SEPARATOR
          = controlWidth                                    CONTROL
          + chevronGap + dividerThickness + chevronWidth     SPLIT
          + chevronGap +                    chevronWidth     DROPDOWN

idealHeight = padTop + max( textHeight, iconHeight ) + padBottom

A gap is charged only when there is something on both sides of it, so an icon-only item is legitimately narrower than a captioned neighbour, and icon-only, caption-only and icon+caption all come out of one formula.

Gravity, and where the overflow chevron sits

Left-gravity items pack forward from the client's left edge in the order you added them. Right-gravity items pack against the right edge, also in the order you added them, so the last right-gravity item sits hard against the right edge. The overflow chevron appears immediately inboard of the right-hand run — at the trailing edge of the flowing area, where a user looks for it — so it never displaces a pinned right-hand item.

When the run does not fit, items are moved into the overflow menu in this order:

1. from the tail of the left run (its last item first), then
2. from the front of the right run (its leftmost item first), so the outermost right-hand items survive longest.

TBR_KIND_CONTROL cells are never moved into the menu — a window cannot live inside one. If a control cell cannot be placed at all it is hidden.

Two fonts

The text font is a layout input: changing it re-measures every caption and moves everything. The glyph font is a paint-time input only — the icon cell is a size you declare, never measured, so a glyph too large for its cell simply clips. Both fonts are borrowed; keep them alive and destroy them yourself.

An icon can be a glyph or a real image

An item's icon slot holds either a Segoe Fluent Icons glyph or a picture loaded from a file — never both. The setters enforce that: PsToolbar_SetItemImage clears the glyph on a successful load, and PsToolbar_SetGlyph frees the image.

The image is fitted into the same declared icon cell a glyph would charge, aspect preserved, so switching an item from a glyph to a picture costs no layout change and no re-sizing of the bar. An item with neither charges no icon cell at all.

PsToolbar_SetItemImage( ghToolbar, idxRun, AfxGetExePathName() & "icons\run.png" )

The toolbar owns every image it loaded and frees it for you — on PsToolbar_DeleteItem, on PsToolbar_Clear, and when the control is destroyed. Chevrons and the overflow button are always glyphs; there is no image path for the bar's own chrome.

Programmatic setters are silent

PsToolbar_SetSelected changes state without firing SelChangeCallback, which is what makes it safe to call from inside your own handler. Only user interaction notifies. The two exceptions are named as actions rather than setters: PsToolbar_Click and PsToolbar_Toggle do fire, which is how an accelerator drives the toolbar.

Radio groups

Give two or more TBR_KIND_TOGGLE items the same non-zero group id and checking one unchecks the others. Both edges are reported, loser first, and both state writes land before either callback — so a handler that reads the whole group sees a coherent one rather than a moment with two members checked. Clicking the member that is already checked is a silent no-op, exactly as a radio button behaves. "Nothing checked" is a legal state you can set programmatically but the user cannot reach.

Menus are themed from the bar

PSPOPUPMENU_COLORS carries no defaults except its separator colour, so a popup menu that is never given colours renders black on black. Every menu this toolbar creates is therefore themed from PSTOOLBAR_COLORS at creation, and re-themed whenever you call PsToolbar_SetColors — so theming the bar themes its menus for free and you set one palette.

If you want a different look for the menus, PsToolbar_SetMenuColors claims them permanently: from then on a bar re-theme leaves them alone, and menus created later still get your palette.

Menus are owned by the toolbar, filled by you

PsToolbar_GetItemMenu creates the item's PsPopupMenu on first call and hands it to you. Fill it like any popup menu, and handle its commands with PsPopupMenu_SetSelectCallback — do not call PsPopupMenu_SetNotifyWindow on it, because the toolbar registers itself there to track the menu's open/closed state. The toolbar destroys every menu it created when it is destroyed.

The overflow menu is different: its contents are rebuilt from scratch on every open, so rows you add to it will be gone next time. Its row ids are item index + 1, so your own command ids never enter its command stream. Picking a row activates that item exactly as clicking it on the strip would, through the same code path — your ClickCallback does not need to know which happened.

Child windows in a CONTROL cell

Parent the child to the toolbar, not to your form: the toolbar positions it with SetWindowPos in its own client coordinates. You create it, you own it, you destroy it. On PsToolbar_DeleteItem or PsToolbar_Clear the child is hidden and forgotten, never destroyed.

Reading it needs nothing from the toolbar — you created the window, so use it directly. PsToolbar_GetItemChild hands back the HWND if you did not keep it, and PsToolbar_FindItemByChild goes the other way.

Hearing from it does need something, because parenting the child here is what makes the cell work and is also what intercepts its notifications: WM_COMMAND (EN_CHANGE, EN_SETFOCUS, CBN_SELCHANGE, …), WM_NOTIFY and the WM_CTLCOLOR* family are all sent to "the parent", which is now the toolbar rather than your form. Two ways to get them back:

• Do nothing. Anything the toolbar is not asked to claim is forwarded to the toolbar's own parent, so a form that already handles these in its window procedure keeps working unchanged.
• Register PsToolbar_SetControlNotifyCallback and see them first.

The toolbar does not interpret notification codes and cannot: EN_SETFOCUS, CBN_SETFOCUS and BN_SETFOCUS are different numbers, and a generic cell does not know its child's class. You get the raw message with the item resolved. Selecting the text when a search box gains focus:

function OnControlNotify( byval m as PSTOOLBAR_CONTROLNOTIFY ptr ) as boolean
    if m->uMsg <> WM_COMMAND then return false
    if m->hChild <> ghSearchBox then return false

    select case hiword( m->wParam )
    case EN_SETFOCUS
        SendMessageW( m->hChild, EM_SETSEL, 0, -1 )      ' select all
    case EN_KILLFOCUS
        dim as string sText = AfxGetWindowText( m->hChild )
        ApplyFilter( sText )
    end select
    return false          ' observed, not claimed -- let it reach the form too
end function

Return TRUE to claim a message, and set m->lResult first if it needs a return value — WM_CTLCOLOR* is answered with an HBRUSH. The toolbar supplies no default for those: it positions your child and never themes it, so an unclaimed WM_CTLCOLOR* behaves exactly as it would have without the toolbar.

Keyboard in a CONTROL cell

Keystrokes do not arrive through the notify callback, and cannot: a key goes to the focused window, so a message merely destined for your child never passes through the toolbar at all. Enter, Escape and Tab in an embedded edit are handled in your message pump, and where you put the test is the whole difficulty:

do while GetMessage( @uMsg, null, 0, 0 )
    ' 1. The toolbar first, so that while a dropdown is open ENTER commits the highlighted
    '    menu row instead of reaching your control.
    if PsToolbar_FilterMessage( hToolbar, @uMsg ) then continue do

    ' 2. Your child's keys next -- BEFORE IsDialogMessage.
    if uMsg.message = WM_KEYDOWN andalso uMsg.hwnd = ghSearchBox then
        select case uMsg.wParam
        case VK_RETURN : RunSearch() : continue do
        case VK_ESCAPE : SetWindowTextW( ghSearchBox, "" ) : continue do
        end select
    end if

    ' 3. Everything else.
    if IsDialogMessage( hMain, @uMsg ) = 0 then
        TranslateMessage @uMsg
        DispatchMessage  @uMsg
    end if
loop

Put step 2 after IsDialogMessage and the keys never arrive: that call turns VK_RETURN into an IDOK command for the form and VK_ESCAPE into IDCANCEL. Consuming the key with continue do also stops a single-line EDIT beeping at an unhandled return.

Behaviour and limits

• Horizontal only. There is no vertical orientation.
• No focus, no tab stop, no keyboard. The toolbar is mouse-driven. Reach commands from the keyboard through your own accelerators and PsToolbar_Click.
• The overflow menu does not scroll. PsPopupMenu has no scrolling, so an overflow list taller than the work area is clipped. This is a control for a dozen or so items squeezed into a narrow bar, not for fifty.
• Only one menu chain is open at a time. Opening a second dropdown closes the first, and the first reports its closing edge.
• A TBR_KIND_CONTROL cell is never moved into the overflow menu. If it cannot be placed it is hidden.
• Trimmed separators do not reclaim their space. A separator that ends up leading or trailing the visible run is suppressed and costs nothing, but the width it frees is not given back to another item — the overflow split is not recomputed.
• An icon-only item with no tooltip has no readable name. If it overflows it appears in the menu as #n. Give any item that might overflow a caption or a tooltip.
• A split button's chevron zone owns the trailing padding, so clicks near the right edge of a split button open the menu rather than firing the action.
• A dropdown opens on the button-down, not the release.
• No double-click. CS_DBLCLKS is off, so every click of a rapid pair is delivered — a toggle clicked twice quickly toggles twice.

API reference

Creation

Building the bar

The item set is fully dynamic. The control fixes up its own internal indices across a mutation; if you hold an item index across one, fix up yours.

Counts and lookup

Item content and state

Geometry and layout

Bar-level setters take raw pixels — you DPI-scale them. Only the Create-time defaults are scaled for you. Every geometry query forces a pending layout.

Appearance

If no text font is set the control measures and paints with the stock GUI font; if no glyph font is set it uses the text font. Measuring and painting always use the same font.

Menus

Tooltips

An item with neither its own text nor a callback answer shows no tooltip. There is no automatic fallback to the caption.

Tooltips: two backends

The toolbar ships on the system (comctl32) tooltip. PSTIP_MODE_PS switches this instance to PsTooltip: owner-drawn, themeable, word-wrapping without a hand-sent TTM_SETMAXTIPWIDTH, and — the one that matters structurally — not a subclass of the control it serves, so it still works when the window under the cursor is a descendant rather than the toolbar itself.

The default is deliberate, not caution. PsTooltip's colour defaults are dark, so a control that switched itself would put a dark tip on a light form. Theme every tip in the process with PsTooltip_SetDefaultColors and friends, then opt in per instance.

The mode changes how a tip is drawn, never what it says. Both backends resolve per-item text through the same rule — the item's own tooltip text first, then TooltipCallback, then nothing.

All three delays are honoured by both backends and are stored as well as pushed, so a delay set before a mode switch is still in force after it. A delay you never set keeps the backend's own derivation from the system double-click time, which is what makes a tip appear on the same beat as every other tip on the machine.

PsTooltip_SetDefaultColors( @myTipColors )     ' once, at startup, for every tip in the process
PsTooltip_SetDefaultFonts( ghFontUI )

PsToolbar_SetTooltipMode( ghToolbar, PSTIP_MODE_PS )
PsToolbar_SetHoverTime( ghToolbar, 400 )
dim as HWND hTip = PsToolbar_GetPsTooltipHandle( ghToolbar )
if hTip then PsTooltip_SetMaxWidth( hTip, 260 )   ' not reachable on the system backend

Neither backend adds a pump obligation — PsTooltip has no FilterMessage. PsToolbar_FilterMessage remains mandatory for an entirely separate reason: the dropdown and overflow menus are toolbar-owned PsPopupMenus.

Callback registration

Pass 0 to any of these to remove the callback.

Message pump and probes

The two probes are public so that a host writing its own paint callback can check it: a low tone count means the callback is flooding the control, and two equal hashes across a state change mean the change never reached the pixels. Measure your own healthy and broken values — a threshold that works for one part rect does not transfer to another.

Pure helpers

These take no handle and touch no window, so you can use them to reason about layout before you build one.

Colors

PSTOOLBAR_COLORS, copied on SetColors. Defaults are a dark theme; a light-theme host sets all nine.

State precedence, resolved by PsToolbar_ResolveMood so every renderer agrees:

disabled > pressed > hot > idle

isSelected is deliberately not part of that ladder — a latched toggle can also be hot or pressed. The painter combines the two: a selected idle item takes the Select pair, and a selected disabled item keeps the Select background under the disabled foreground.

Pressed reuses the Select pair rather than adding a tenth colour: on a command item it is the flash that makes the button feel pressed, and on a toggle it previews the latched look the release is about to produce. An open dropdown paints hot, so the button stays lit while its menu is up.

The state fill is a rounded rect drawn over the base fill, so the bar background always shows in the gaps between cells and an item reads as a pill. On a split button a hover lights only the half the pointer is over.

Callbacks

Paint

type TBR_PaintItemCallbackSub as sub( byval p as PSTOOLBAR_PAINTINFO ptr )

Setting this replaces the built-in painter for every item, separators and the overflow button included. The overflow button arrives with itemID = -1 and itemKind = TBR_KIND_DROPDOWN, so one renderer can serve both.

Three rules:

• Fill p->rc, not p->rcIcon. rc includes the item's padding; leaving part of it unpainted shows the bar background through.
• Do not stroke a frame with PaintBorderRect — it fills before it strokes and will erase everything beneath. Use PaintRoundOutline. PsToolbar_CountRenderedTones exists so you can check you have not.
• Draw the caption in the font you gave PsToolbar_SetTextFont. The control measured with it; painting a bolder variant makes the cell too small and the caption ellipsize. If you want bold, hand the bold font to SetTextFont so measuring and painting agree.

PSTOOLBAR_PAINTINFO:

Message

type TBR_MessageCallbackFunc as function( byval m as PSTOOLBAR_MESSAGEINFO ptr ) as boolean

Return TRUE to suppress the control's own handling of that message.

The result is ignored for WM_LBUTTONUP. The control holds mouse capture across a press on an action zone and the up-message is what releases it; a callback that suppressed it would strand the capture and route every later click to this control. Suppressing WM_LBUTTONDOWN suppresses the press, never the capture bookkeeping.

Tooltip

type TBR_TooltipCallbackFunc as function( byval hToolbar as HWND, byval idx as long ) as DWSTRING

Consulted only when the item has no tooltip text of its own, and only when a tip is about to show. Return "" for no tooltip.

Click

type TBR_ClickCallbackSub as sub( byval hToolbar as HWND, byval idx as long, byval id as long )

A matched press and release on the same zone of a command item, or a split button's action zone. Nothing fires for a cancelled gesture — press, slide off, release. Toggles report through SelChangeCallback instead.

It also fires for a pick from the overflow menu, so a handler never has to know whether the item was on the strip or behind the chevron.

Selection change

type TBR_SelChangeCallbackSub as sub( byval hToolbar as HWND, byval idx as long, byval isSelected as boolean )

A toggle latched or unlatched by the user. Fires after the state is updated, so PsToolbar_GetSelected already agrees. For a radio group both edges fire, loser first, with both state writes landing before either callback. PsToolbar_SetSelected does not fire it.

Control notify

type TBR_ControlNotifyFunc as function( byval m as PSTOOLBAR_CONTROLNOTIFY ptr ) as boolean

A TBR_KIND_CONTROL cell's child sent a message to its parent. Return TRUE to claim it, having set m->lResult if it needs a value; return FALSE and it is forwarded to the toolbar's own parent. See Child windows in a CONTROL cell for the worked example.

PSTOOLBAR_CONTROLNOTIFY:

Drop down

type TBR_DropDownCallbackSub as sub( byval hToolbar as HWND, byval idx as long, byval hMenu as HWND, byval isOpen as boolean )

idx is −1 for the overflow menu. It reports a window-state transition, not a value change, so it fires for programmatic opens too.

For a split or dropdown item the opening edge runs before a single row is built — that is the just-in-time hook for a menu whose contents change:

sub OnDropDown( byval hToolbar as HWND, byval idx as long, byval hMenu as HWND, byval isOpen as boolean )
    if isOpen = false then exit sub
    if idx = -1 then exit sub          ' the overflow menu builds itself
    PsPopupMenu_Clear( hMenu )
    PsPopupMenu_AddItem( hMenu, IDM_RUN_DEBUG,   "Run in Debugger", "F5" )
    PsPopupMenu_AddItem( hMenu, IDM_RUN_RELEASE, "Run Release",     "Ctrl+F5" )
end sub

The overflow menu is the exception: the control fills it from the items that did not fit, and its opening edge fires after it is built.

Constants

Item kinds — PSTOOLBAR_ITEMKIND

Gravity — PSTOOLBAR_GRAVITY

TBR_GRAVITY_LEFT (0), TBR_GRAVITY_RIGHT (1)

Hit zones — PSTOOLBAR_HITZONE

Parts — PSTOOLBAR_PART

TBR_PART_TOOLBAR, TBR_PART_ITEM, TBR_PART_ICON, TBR_PART_TEXT, TBR_PART_CHEVRON

Moods — PSTOOLBAR_MOOD

TBR_MOOD_IDLE, TBR_MOOD_HOT, TBR_MOOD_PRESSED, TBR_MOOD_DISABLED

Defaults

DPI-scaled at Create unless noted. Setters afterwards take raw pixels.

The default chevron glyphs are Segoe Fluent Icons E70D (ChevronDown) and E712 (More); PsToolbar_SetGlyphs changes both.

Related controls

PsToolbar creates a PsPopupMenu for each split or dropdown item and one for the overflow button. You fill those menus and handle their commands through PsPopupMenu's own API, so see its documentation for row building, submenus, theming and the check gutter.

If you want a static icon-only strip with no captions, no overflow and no menus, PsIconPanel is the smaller control. For a single button, PsButton; for a row of text labels with one current, PsSelectBar.

Running the demo

The demo loads Segoe Fluent Icons at startup via AddFontResourceEx, and aborts if the font is absent — the control family draws its glyphs from it.

The font ships with Windows 11 but is Microsoft's, not ours, so it is not redistributed here. Copy it in once before building:

copy C:\Windows\Fonts\SegoeIcons.ttf SegoeFluentIcons.ttf

Note the rename: Windows stores the file as SegoeIcons.ttf, while the family name is "Segoe Fluent Icons". On Windows 10 the font is not present at all.

Licence

Mozilla Public License 2.0.

MPL-2.0 is file-level copyleft, chosen deliberately for a drop-in control:

• You may use this in closed-source software, commercial or otherwise. §3.2 permits static linking with no additional conditions.
• If you modify these files, publish those files' changes. The obligation is per-file — your own sources are unaffected however tightly they are combined with these.
• The Exhibit B "Incompatible With Secondary Licenses" notice is not applied, which keeps this GPL-compatible.
