PsTooltip

An owner-drawn tooltip for FreeBASIC/Win32 applications built on the AfxNova framework.

PsTooltip is a WS_POPUP window that appears near the cursor after a dwell, shows a message — optionally wrapped, optionally under a bold title and an icon glyph — fades in, and goes away again. It draws itself, so it matches an owner-drawn application instead of looking like system chrome, and it adds capabilities the comctl32 tooltip does not expose without message-level poking: word wrap with a maximum width, a title band, a balloon stem that points at the target, and a fade you can time or switch off.

You attach one to a control and then largely forget about it. PsTooltip_Create( hCtrl ) creates the tip and attaches it; from that point a shared timer watches the cursor and decides when to show, when to hide, and how to fade. It does not subclass the control it serves and it adds nothing to your message loop.

It is a display element only. It never takes focus, never takes activation, and is hit-test transparent, so clicks pass straight through it to whatever is underneath. Only one tip is ever on screen at a time, whatever number of them you create.

Repository: <https://github.com/PaulSquires/PsTooltip>

---

What it looks like

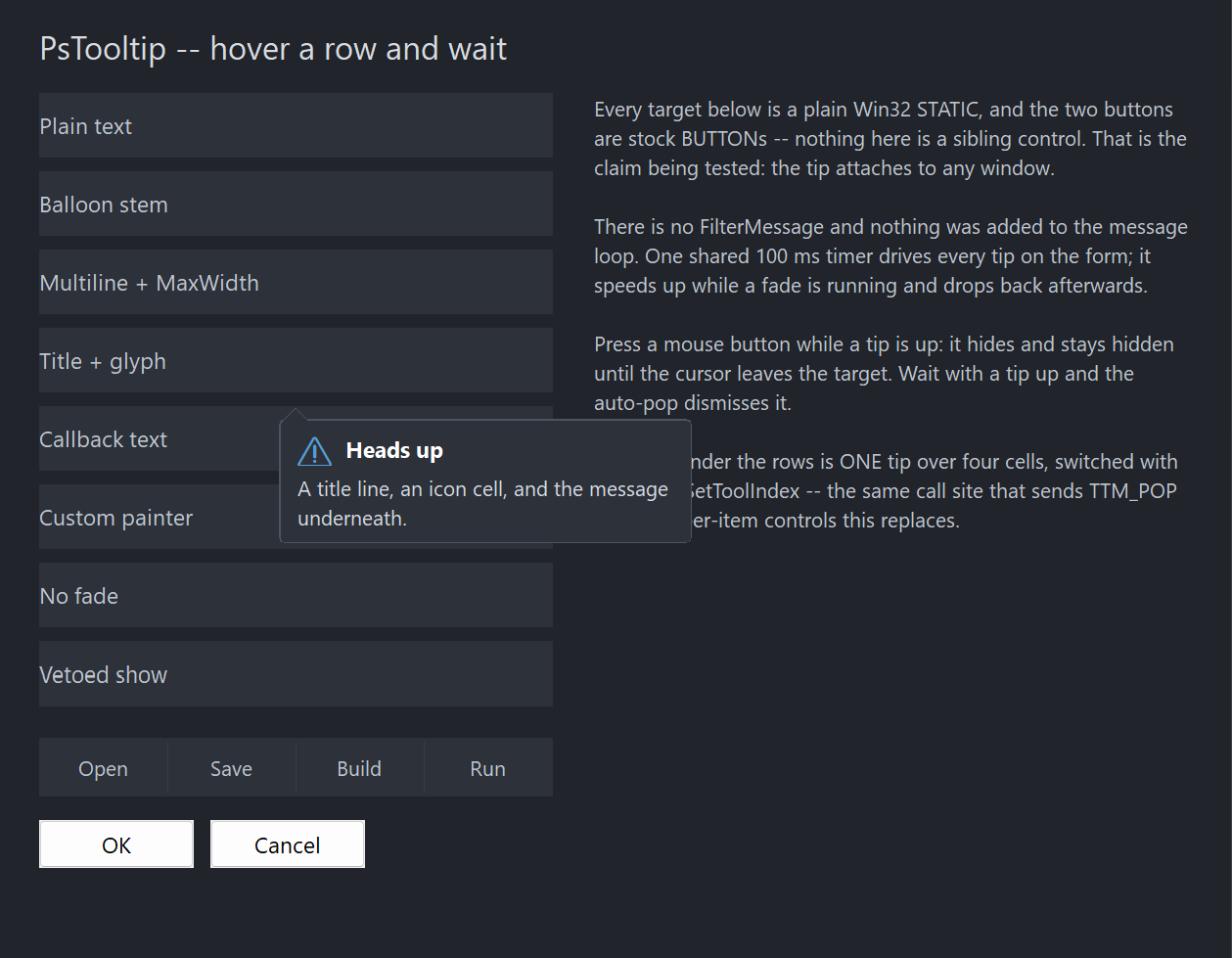

Each row in the demo is a plain Win32 STATIC with its own tip configured differently. The tip shown is the "Title + glyph" one: an icon cell, a bold title band, a wrapped message, and a balloon stem pointing back at the cursor. Only one tip is visible at any moment, which is why the other seven are not also in the picture.

---

Requirements

PsBufferPaint must be at version carrying PaintPolygon; TIP_STYLE_BALLOON draws its stem with it.

Include order

Verified against the demo's main.bas. PsTooltip.inc includes PsTooltip.bi itself, so you only name the .inc — but PsBufferPaint.inc must come first:

#include once "windows.bi"
#include once "AfxNova\CWindow.inc"
#include once "AfxNova\AfxStr.inc"
#include once "AfxNova\AfxGdiplus.inc"
using AfxNova

#include once "PsBufferPaint.inc"
#include once "PsTooltip.inc"

GDI+ must be running

The frame, the rounded corners and the stem are geometry drawn through GDI+. Initialise it before the first repaint and shut it down after every window is destroyed:

dim as ULONG_PTR gdipToken = AfxGdipInit()
function = frmMain_Show( 0 )
AfxGdipShutdown( gdipToken )

Without the bracket the tip draws nothing at all.

Do not name any identifier ok

GDI+ defines Ok = 0 as a Status enum value in namespace AfxNova, and your host says using AfxNova. Any variable, parameter or function of yours called ok becomes a duplicate definition the moment you adopt this control. Use bOK.

There is no pump obligation

PsTooltip has no FilterMessage and needs nothing added to your message loop. If you are coming from PsComboBox, PsTextBox, PsMenuBar, PsNumericUpDown or PsDatePicker you will be looking for one — there isn't one. The dwell detection, click dismissal and fade all run off a shared timer, and the tip never receives keyboard input, so there is nothing for a filter to do:

dim as MSG uMsg
while GetMessage( @uMsg, null, 0, 0 )
    TranslateMessage( @uMsg )
    DispatchMessage( @uMsg )
wend

Destroy the tip with the control it serves

The tip is a top-level window and nothing else will free it. Destroy it where you destroy the control it is attached to:

case WM_NCDESTROY
    if IsWindow( pCtrl->hTip ) then DestroyWindow( pCtrl->hTip )

---

Quick start

' One call creates the tip AND attaches it to the control.
dim as HWND hTip = PsTooltip_Create( hMyControl )

PsTooltip_SetFonts( hTip, ghFont(GUIFONT_9), ghFont(GUIFONTBOLD_10), ghFont(GUIFONT_14) )
PsTooltip_SetText( hTip, "A plain tooltip." )

That is a complete working tooltip. Everything below is optional.

A wrapped tip with a title, an icon and a stem:

PsTooltip_SetTitle( hTip, "Heads up" )
PsTooltip_SetGlyph( hTip, wchr(&h26A0) )              ' from the glyph font
PsTooltip_SetText(  hTip, "A title line, an icon cell, and the message underneath." )
PsTooltip_SetMaxWidth( hTip, 260 )
PsTooltip_SetStyle( hTip, TIP_STYLE_BALLOON )

Text supplied on demand instead of stored — the callback runs only when a tip is about to appear, so it can report live state:

PsTooltip_SetTooltipCallback( hTip, @MyTipCallback )

private function MyTipCallback( byval hTooltip as HWND, byval hAttached as HWND, _
                                byval idx as long ) as DWSTRING
    if idx < 0 then return ""                         ' "" means show no tip at all
    dim as DWSTRING wszOut = "Row " & str(idx) & ": " & gRows(idx).Name
    return wszOut
end function

For a control with several hot regions, use one tip for the whole window and tell it which item the cursor is over. Call this from your WM_MOUSEMOVE — a set to the value it already holds costs nothing:

case WM_MOUSEMOVE
    dim as long idx = HitTestMyCells( hwnd, x, y )
    PsTooltip_SetToolIndex( hTip, idx )               ' -1 when over no cell

---

Concepts

The handle is a real HWND

PsTooltip_Create returns an ordinary window handle. It is not an opaque token — but unlike every other control you will not position it, because the tip decides its own place.

It sizes and places itself

This is the one control here that is not a rectangle you lay out. Its size comes from its content (text, title, glyph, padding, border, stem band) and its position from the cursor or from an anchor rect you pass to PsTooltip_ShowForRect. PsTooltip_GetIdealSize is informational; nothing you do with SetWindowPos will survive the next show.

Placement clamps into the work area of the nearest monitor, and when there is no room below the anchor the tip flips above it rather than being pushed up over it.

Size formula

contentW = max( titleRow, message )
    titleRow = glyphCell + (gap if both a glyph and a title) + title
    message  = measured at nMaxWidth when one is set, natural width otherwise

width  = contentW + 2*padX + 2*border
height = titleRowHeight + (titleGap if both bands present) + messageHeight
         + 2*padY + 2*border
         + stemHeight   (TIP_STYLE_BALLOON only)

SetMaxWidth caps the text wrap, not the window. The width is a max() over the bands, so a title longer than the cap legitimately makes the tip wider — clamping there would clip the title rather than the thing the cap was aimed at.

The glyph cell is declared, not measured

PsTooltip_SetGlyphCell states how much room the icon gets. Nothing is measured, so a glyph that is missing from the font, or a different size from the last one, cannot shift the text underneath it.

It watches the cursor; it does not subclass your control

The tip never sees your control's messages. A shared timer samples the cursor position, works out which attached control it is over, and decides from there. That means:

• Attaching costs your control nothing and changes none of its behaviour.
• The tip cannot see your control's items, which is why per-item tips need PsTooltip_SetToolIndex.
• A control that is hit-test transparent still works. A plain STATIC without SS_NOTIFY reports HTTRANSPARENT, so WindowFromPoint returns its parent; the tip recognises that case.

Text resolution order

1. PsTooltip_SetText — if it is non-empty, that is the text.
2. Otherwise TIP_TooltipCallbackFunc, if one is set.
3. Otherwise no tip appears.

There is no fallback to the attached control's caption. If you want the item text as the tip, return it from the callback.

Programmatic and user-driven shows both notify

TIP_ShowCallbackFunc reports a window-state transition, so it fires for PsTooltip_Show as well as for a dwell. Its showing edge is a veto: return FALSE and no tip appears, and no matching hiding edge follows.

---

Behaviour and limits

• Only one tip is visible at a time, process-wide. Showing one hides any other.
• The stem is always vertical. Every placement mode puts the tip above or below its anchor, never beside it, so the stem leaves the top or the bottom edge. There is no left or right stem.
• A tip that is up does not follow the cursor. Moving within the same control neither moves nor dismisses it; leaving the control, clicking, changing the tool index or the auto-pop delay are what end it.
• A click hides the tip and suppresses it until the cursor leaves the control and comes back.
• A refused show is not retried during the same hover. Returning FALSE from the show callback, or "" from the tooltip callback, suppresses the tip until the cursor leaves — so a host callback is consulted once per hover, not on every timer tick.
• The stem is dropped, not shrunk, when it will not fit. A tip narrower than curvature + stemWidth on both sides draws as a plain rounded rectangle.
• The window is region-shaped, so its edge is hard where the region clips. At the default curvature this is not visible; at a large curvature the outermost antialiased pixel of each corner is lost.
• Fonts are borrowed. The control never creates or deletes one. Do not delete a font while a tip using it is alive.
• Single-threaded. UI thread only.
• PsTooltip_SetToolIndex is the only way the tip learns about your items. It has no hit-testing of its own.
• Timing is per tip, not global. Each instance has its own delays and fade time.

---

API reference

Creation and attachment

Content

Appearance

Timing

All in milliseconds. Negative values are clamped to 0. Defaults derive from GetDoubleClickTime().

Process-wide defaults

A control in this family creates its tooltip for itself, lazily, and never hands the host the HWND. Styling every tip on a form one at a time is therefore impossible from the outside. These set what PsTooltip_Create applies to each new tip — call them once at startup, before any control is created.

Each is independently armed: a field you never set keeps the value Create derives for it. That is why this is five calls and not one struct — Create derives all three delays from GetDoubleClickTime(), and a zeroed struct would silently replace a machine-appropriate 500 ms with 0 for a host that only wanted to change the colours.

' Once, at startup -- every control's tooltip follows, including ones built lazily later.
dim tipColors as PSTOOLTIP_COLORS
tipColors.BackColor = BGR(250,250,250)
tipColors.ForeColor = BGR( 30, 30, 30)
PsTooltip_SetDefaultColors( @tipColors )
PsTooltip_SetDefaultFonts( ghFontUI )
PsTooltip_SetDefaultMaxWidth( 260 )
PsTooltip_SetDefaultDelays( 400 )          ' hover time only; the other two stay derived

The system's own tooltip font

PsTooltip_GetSystemFont( byref info as PSTOOLTIP_SYSTEMFONT ) as boolean

Reads SPI_GETNONCLIENTMETRICS's lfStatusFont — the face Windows itself draws tooltips and the status bar in — and reports it. It creates nothing: this control never creates a font (the family rule), so you build the HFONT and you own it, exactly as for PsTooltip_SetFonts.

It lives here for the same reason the delays are derived from GetDoubleClickTime() rather than picked: a tip drawn in a different face and size from every other tip on the machine reads as broken. A host that wants its own font simply does not call this.

Returns FALSE if the system refuses or if what it reports is unusable — no face name, or no derivable point size. On FALSE your struct is not touched, so you fall back to a face of your own rather than to an empty LOGFONT.

Use pointSize, not pixelHeight — the difference is not cosmetic. lfHeight comes back in pixels at the current DPI. Every font-building call that takes a size in points — CWindow.CreateFont among them — DPI-scales what it is given, so handing it the pixel height asks for a font about 1.75× too large on a 175% display, and looks correct at 100%. That is how the bug ships. Points are DPI-neutral, so pixels → points → CreateFont lands back on the size the system asked for. Measured at 175%: LOGPIXELSY 168, pixelHeight 21, pointSize 9.

Build from lfWeight, not isBold. FW_BOLD is a threshold. A system face at FW_SEMIBOLD reports isBold = false, and a host that rebuilt from the boolean alone would redraw it at FW_NORMAL — visibly lighter than the system asked for.

' Take the system's tooltip face, and fall back to your own if it will not answer.
dim sf as PSTOOLTIP_SYSTEMFONT
if PsTooltip_GetSystemFont( sf ) then
    ghTipFont     = pWindow->CreateFont( sf.wszFaceName, sf.pointSize, sf.lfWeight, sf.isItalic )
    ghTipFontBold = pWindow->CreateFont( sf.wszFaceName, sf.pointSize, FW_HEAVY,    sf.isItalic )
end if
if ghTipFont = 0 then ghTipFont = pWindow->CreateFont( "Segoe UI", 9, FW_NORMAL )

' The fonts are BORROWED by every tip -- keep them alive, and destroy them yourself.
PsTooltip_SetDefaultFonts( ghTipFont, ghTipFontBold, ghGlyphFont )

Showing and hiding

These bypass the dwell. The timer still auto-hides what they put up.

Callback registration

Geometry and introspection

Placement and animation helpers

Pure functions — no window, no timer, no state. They are the arithmetic behind placement, exposed so you can reproduce or predict it.

Test seam

This is a test seam, not a control channel: calling it from application code fights the shared timer, which is still running and will tick with the real cursor a moment later. It exists because everything that decides when a tip appears — the dwell, the reshow-versus-initial delay choice, the movement tolerance, click suppression, auto-pop, the fade, and the rule that a refused show covers the whole hover — otherwise needs a live message loop and a real mouse to exercise.

Render probes

Both drive the real paint path into an offscreen buffer. They exist so a host that replaces the painter can assert its render is sane.

Two cautions if you build assertions on these. A tone floor copied from another control is meaningless — the number depends entirely on what else is inside the part rect, and a frame's antialiased corners survive a render with nothing left in it. And a hash comparison must isolate its variable: if the change under test also alters the tip's size, the part rect moves and the hash changes for that reason instead.

---

Colors

PSTOOLTIP_COLORS — five fields, which is as many surfaces as a tooltip has. There are no per-state variants: the tip has no hot, pressed or disabled mood, because it is never interactive.

Paint order in the built-in painter: body fill → frame → stem fill → stem edges → glyph → title → message. The stem is filled after the frame on purpose, with a skirt reaching into the body, so the frame's edge does not draw a line across the stem's base and leave the balloon looking like a triangle stuck onto a closed box.

---

Callbacks

TIP_TooltipCallbackFunc

type TIP_TooltipCallbackFunc as function( byval hTooltip as HWND, _
                                          byval hAttached as HWND, _
                                          byval idx as long ) as DWSTRING

Supplies the message on demand. Consulted only when the tip has no authored text, and only when a tip is about to appear — not on the timer ticks that decide against one. idx is whatever was last given to PsTooltip_SetToolIndex, or -1. Return "" for no tooltip.

TIP_ShowCallbackFunc

type TIP_ShowCallbackFunc as function( byval hTooltip as HWND, _
                                       byval hAttached as HWND, _
                                       byval idx as long, _
                                       byval bShowing as boolean ) as boolean

The showing edge runs after the text is resolved and the window sized, but before anything reaches the screen — return FALSE to suppress the tip. The hiding edge's result is ignored; a tip already on screen cannot be un-hidden. Both edges fire for programmatic shows and hides. A vetoed show produces no matching hide.

A veto covers the whole hover, not one attempt. The dwell conditions are still true a tick later, so a refused show suppresses the tip until the cursor leaves the attached control — which also means you are consulted once per hover rather than ten times a second. Changing the tool index clears that suppression, so vetoing one cell does not silence the rest of the control.

TIP_PaintCallbackSub

type TIP_PaintCallbackSub as sub( byval p as PSTOOLTIP_PAINTINFO ptr )

Draws the whole tip instead of the built-in painter, through p->b. Nothing has been drawn when you are called — the fill and the frame are one rounded shape, so pre-filling the client would put square corners behind it.

Three things to honour:

• Paint the body against p->rcBody, not p->rcClient. rcClient includes the stem band.
• Draw the message with p->nTextFlags and the font you gave SetFonts. The window was sized by measuring with both; a different font or different flags means the size is wrong and the text clips.
• Do not use PaintBorderRect or PaintRoundBorderRect to draw a frame. They fill unconditionally before stroking, so over existing pixels they erase everything beneath. PaintRoundOutline strokes without filling. PsTooltip_CountRenderedTones exists so you can assert you have not done it.

TIP_MessageCallbackFunc

type TIP_MessageCallbackFunc as function( byval m as PSTOOLTIP_MESSAGEINFO ptr ) as boolean

Observes the tip window's messages; return TRUE to suppress the default handling.

Very little arrives here, so do not go looking for something that cannot come. The tip is WS_EX_NOACTIVATE, answers WM_MOUSEACTIVATE with MA_NOACTIVATE and WM_NCHITTEST with HTTRANSPARENT, and is never focused — so it receives no mouse messages at all, no keyboard, and no activation. In practice: WM_PAINT, WM_ERASEBKGND, WM_WINDOWPOSCHANGED and the destroy pair. The user-visible events are on TIP_ShowCallbackFunc.

The result is ignored for WM_DESTROY and WM_NCDESTROY — the control needs both for its own teardown, and suppressing one would leak the state block and leave a dead entry in the internal registry.

PSTOOLTIP_PAINTINFO

PSTOOLTIP_MESSAGEINFO

---

Constants

Style

Alignment

Parts

Geometry defaults

Unscaled pixels, DPI-scaled once when the tip is created. Setters afterwards take raw pixels and you scale them yourself.

The border width defaults to 1 and is not pre-scaled: PaintRoundOutline, PaintLine and PaintPolygon each scale the pen they are handed, so scaling it here as well would double it above 100% DPI.

Timing defaults

Licence

Mozilla Public License 2.0.

MPL-2.0 is file-level copyleft, chosen deliberately for a drop-in control:

• You may use this in closed-source software, commercial or otherwise. §3.2 permits static linking with no additional conditions.
• If you modify these files, publish those files' changes. The obligation is per-file — your own sources are unaffected however tightly they are combined with these.
• The Exhibit B "Incompatible With Secondary Licenses" notice is not applied, which keeps this GPL-compatible.
